Product Name: 4000W AC Voltage Regulator
Use voltage: AC 220V
Maximum power: 4000w
Size: length 85MM* width 58MM* height 38MM, knob inner hole 6MM thyristor
Model: BTA41-800B
Efficiency: more than 90%
Instructions:

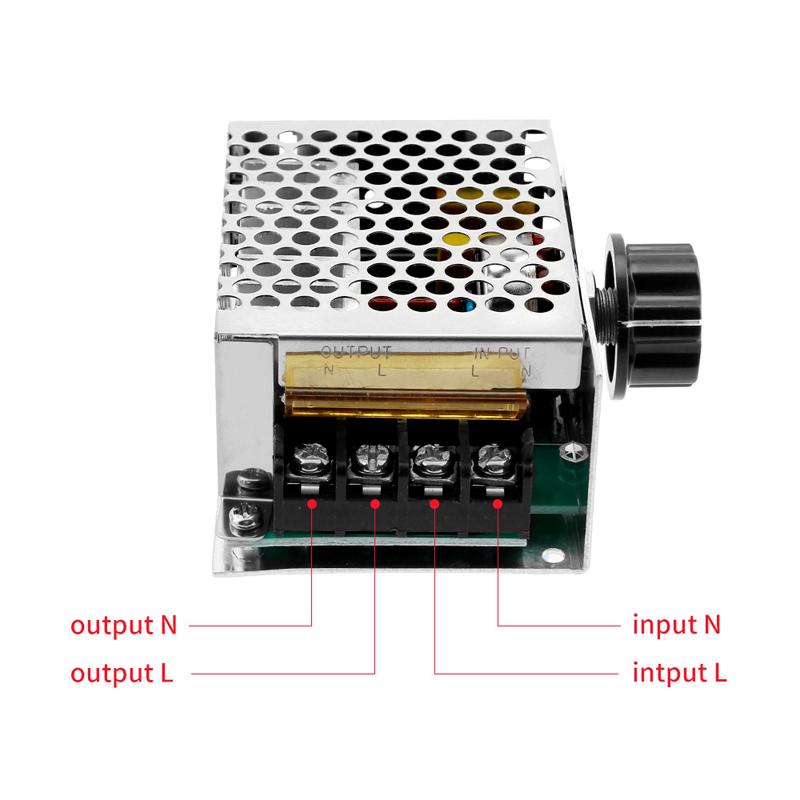

The input of this product is connected to 220V AC, and the output is connected to the electric furnace wire or electrical appliance, and the potentiometer can be rotated to adjust the speed, voltage and temperature; it is very convenient to use.
This product is suitable for:
Using a new type of bidirectional high-power thyristor, because the maximum design current can reach 20A, it solves the problem of overcurrent caused by too small resistance of the electric furnace wire when it is cooled; it can easily adjust the output voltage of the mains , can be adjusted arbitrarily between 0—-220 volts for electrical appliances. Such as: electric furnace, heat adjustment of water heaters, light adjustment of lamps, speed adjustment of small motors, temperature adjustment of electric irons, etc. So as to achieve the effect of dimming, temperature regulation and pressure regulation. It can be used for large electrical appliances with a power consumption of less than 4000 watts. Since the power is already large, it is sufficient for general household appliances or small factories.
Precautions:
Note that the load cannot exceed the specified maximum power, otherwise the modules and electrical appliances will be burned; try to use resistive loads; the power of inductive and capacitive loads should be greatly reduced (it is better to leave more than half of the load).
Kind tips:
The structure design of this voltage regulator is unique, please do not open or modify it by yourself. If you force open it due to improper assembly or change of circuit modification principle, you will be responsible for all consequences!!
