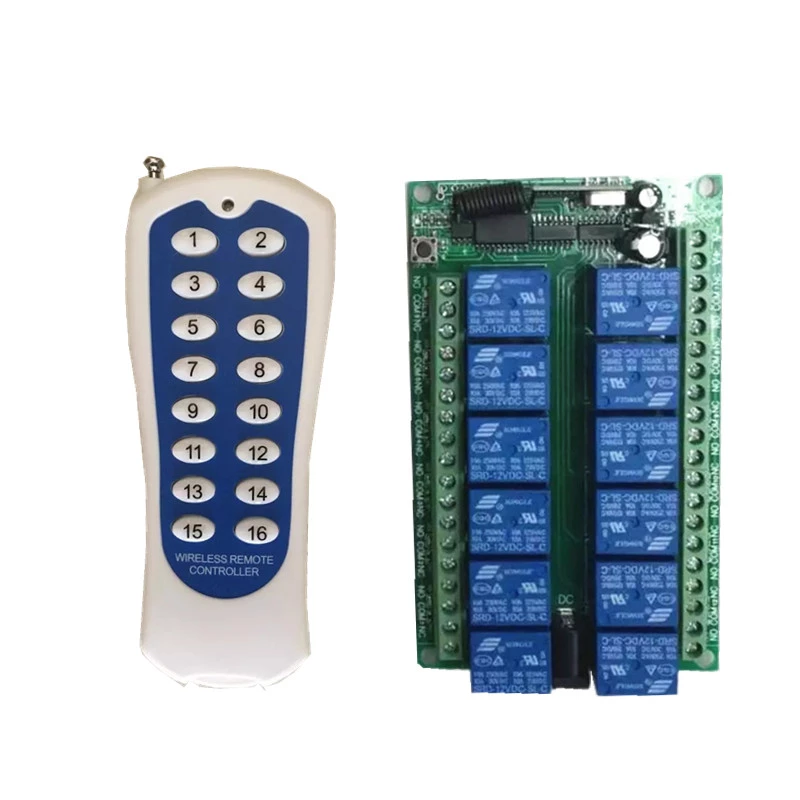

12V 16CH Wireless Remote Switch Relay 16 Channel Relay Module 12V 433MHz/315MHz Remote Control Module Learn Code

Specifications:

Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

1.Transmitter

Channel: 16 CH

Remote Control Distance:0-100 M (10-50% in reality )

Frequency:315 or 433.92 mhz

Size: 130mm x 52mm x 13mm

Power Supply: 1 X 12V/23A (battery included)

2.Control Mode

1)Toggle/Self-Lock: (Press Button 1 to learn) Press->On; Press again->Off

Press one button for one time is working/ON , press the same button again is stop/OFF .

2)Latched/Inter-Lock: (Press Button 3 to learn) Press->On; Press other button->Off

Press one button is working/ON , press another button is stop/OFF .

3)Momentary/Jog: (Press Button 2 to learn) Press and hold->On; Release->Off

Keep pressing one button is working /ON. Loosen your finger is stop/OFF.

4)Momentary & Toggle: (Press Button 4 to learn)  1-8 Buttons are Toggle and 9-16 Buttons are Momentary.

5)Toggle & Momentary: (Press Button 5 to learn)  Channel 1 is Toggle , other 15 Channels are Momentary.

(Original Setting is  Momentary , change it by yourself.)

Decode: Fixed code, soldering

Power Supply (Operating Voltage): DC 12V

Current: 8 mA

Sensitivity:-105 dBm

Operating Temperature:-20‘C – 70’C

Size:117 X 74 X 18 mm

4.Learn code and Clear Code

1.Clear code:Press the learning button on the receiver about 10 seconds,when hear BI sound again, it means the codes are cleared.

2.Press the learning button on the receiver for one time, when hear BI sound,it means enter into learning status,then press the relative button on the remote, when hear 3 sounds BI BI BI, it means learn successfully.

3.Package Included

1 x Receiver

1/2 x Remote control Transmitter
