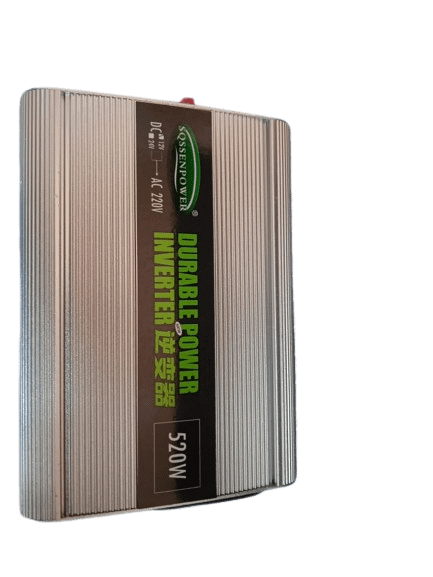

500W 12V Inverter Specification
| Model | 520W |
| Input Voltage | DC 12V |
| Output Voltage* | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% – NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.3A |
| Continuous Power | 500W |
| Peak Power | 520W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | 5V 1A |
| Outlet Type* | Universal outlet *1 |
| Input Voltage Range | 10V-15.5V |
| Low Voltage Alarm | 10.5V±0.5V |
| Low Voltage Shutdown | 10V±0.5V |
| High Voltage Shutdown | 15.5V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Product Size | 225x115x60mm |
| Net. Weight | 970g |
