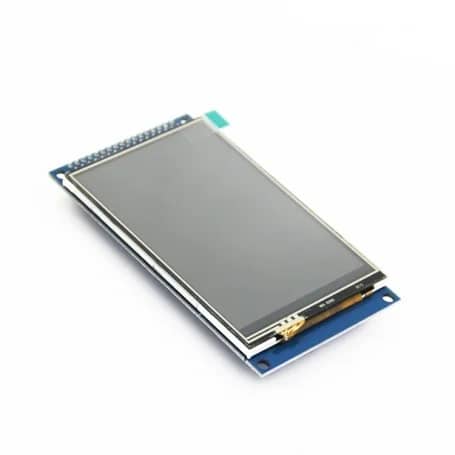

3.5 inch LCD screen module Ultra HD 320X480 ILI9486/ILI9488 for STM32
₨ 2,500.00
In stock
17
People watching this product now!
Description
Directly pin-pin compatible with an Arduino Mega 2560 development board.
- 3.5-inch color screen, support 65K color display, display rich colors
- 320×480 HD resolution for clear display
- Fast transmission with 16-bit parallel bus
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Support Arduino Mega2560 direct plug-in use
- Provides an Arduino library with a rich sample program
- Easy to expand the experiment with SD card slot
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Name
Parameter
Display Color
RGB 65K color
SKU
MAR3513
Screen Size
3.5(inch)
Type
TFT
Driver IC
ILI9488
Resolution
480*320 (Pixel)
Module Interface
16-bit parallel interface
Active Area
48.96×73.44 (mm)
Module PCB Size
60.30×96.60 (mm)
Backlight
6 chip HighLight white LEDs
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Operating Voltage
5V/3.3V
Power Consumption
TBD
Product Weight(Package containing)
about 49(g)
