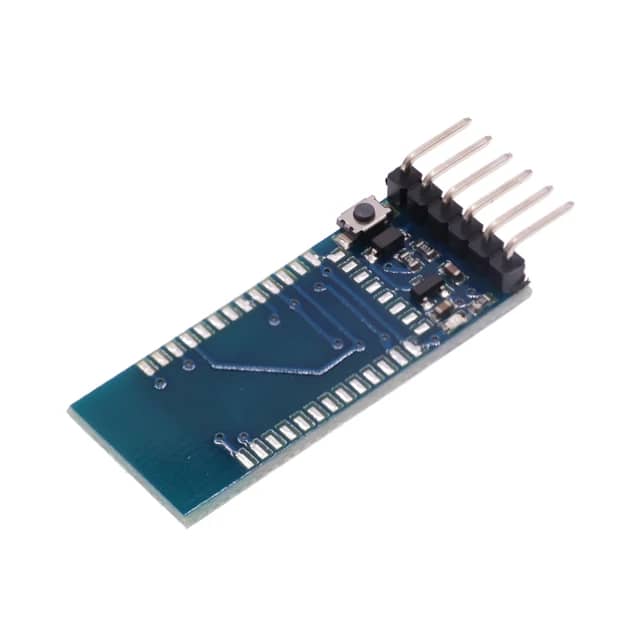

Bluetooth Serial Transceiver Module Base Board 6Pin

Product Features :

1: The factory chip production , stable and reliable quality

2: Power anti-reverse , reverse power does not work

3 : Input voltage 3.6 ~ 6V, must not exceed 7V! !

4: common variety of models can be installed Bluetooth

module , such as HC05, HC06, HC07, BC04 , or other

compatible Bluetooth module pin definitions

5: The pin-outs include common TXD, RXD, STATE

( if any ) pin , easy to use

6: Set Clear button on the board to support a key pin

modules ( such as the HC05, HC06/HC07 host , etc. )

7 : Set EN Enable pin unconnected or tied high when

the module work, grounded off the module power

( off current u003c20uA) reduce power consumption

8 : Size : 1.55 * 3.73 (cm)
