DJI OM 5 Smartphone Gimbal

SKU: 0855

 24,000.00

In stock

19 People watching this product now!

Description

Athens Gray DJI OM 5 smartphone gimbal stabilizer comes in an even more compact frame that’s easier to balance and fold down, and it now features an extension rod that provides an additional 8.5″ length to help design more creative shots. It retains the handy foldable magnetic smartphone mount, and it now comes in a metal design with metal joints for improved durability and ergonomics.

The OM 5 features Bluetooth 5 control and syncs up with the DJI Mimo app to provide multiple shooting modes and functions, including Sport, Portrait, Underslung, Landscape, Time-Lapse, DynamicZoom (Dolly Zoom), Hyperlapse, Panorama, enhanced “CloneMe” Panorama, Slow-Motion, Inception-style spin (SpinShot), and a Sport mode for fast-action shooting. In addition to using the joystick controls on the handle, you can also use hand gestures to control the gimbal to track your movement, take a selfie, or start/stop your smartphone camera, so you don’t have to press the record button or touch any controls. It can also automatically track body shapes to track human subjects without the need to make a manual selection with the latest ActiveTrack 4.0.

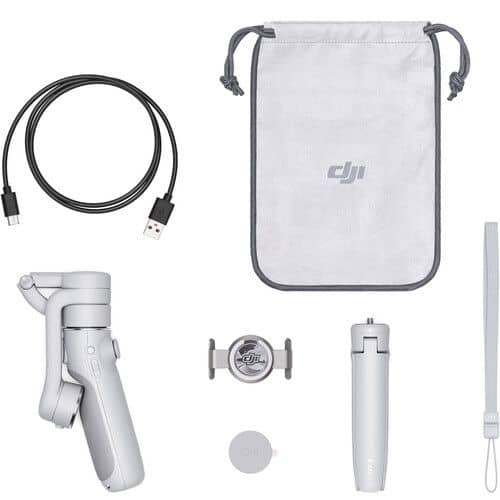

You can mount any smartphone up to 3.3″ wide in its phone cradle, and its magnetic phone holder and smartphone magnetic ring allow for simple and fast mounting and unmounting. The integrated intelligent sensor even tells you when your smartphone is mounted. The built-in battery runtime is approximately 6.4 hours, and it takes approximately 1.5 hours to charge using the included USB Type-C cable. The bottom of the gimbal handle features a 1/4″-20 mounting thread to mount the gimbal on the included grip tripod or other accessory. A storage pouch and wrist strap are also included with the gimbal.

Key Features

  • Extension rod for additional 8.5″ length
  • Supports up to 3.3″ wide smartphones
  • Magnetic smartphone mount with intelligent sensor
  • Ultracompact, foldable design with redesigned comfort handgrip
  • High-torque motor
  • Easy to balance
  • Controllable range: -161.2 to 172.08° pan / -101.46 to 229.54° tilt / -127.05 to 208.95° roll
  • Bluetooth 5.0 support
  • Controllable speed: 120°/s max
  • Built-in battery: Up to 6.5-hour runtime / 7.74Wh capacity, 1000mAh
  • 1/4″-20 tripod mounting thread
  • USB Type-C power input
  • Grip tripod included

DJI Mimo App

  • ActiveTrack 4.0 technology built into the app allows the OM 5 to automatically keep your phone facing you as you move
  • Gesture control: Reads certain hand gestures to take a still, record video, or track a subject
  • Body shape recognition for more accurate tracking of a person
  • New Sport mode for faster movements
  • Modes/Functions: Standard, Portrait, Underslung, Flashlight, Time-Lapse, Hyperlapse, and Panorama
  • Live stream moments using YouTube Live
  • Take one-second-long exposures to produce light trails, star trails, and dramatically blurred cars without a tripod

DJI Mobile 5 Specs

Gimbal
Number of Axes 3-Axis (Pitch, Roll, Yaw)
Rotation Range Yaw (Pan): 334° (-161.2 to 172.8°)
Roll: 336° (-127.1 to 208.9°)
Pitch (Tilt): 331° (-101.5 to 229.5°)
Follow Speed Pan: 120°/s
Tilt: 120°/s
Roll: 120°/s
Load Capacity 6 to 8.1 oz / 170 to 230 g
Compatibility
Smartphone Dimensions Width: 2.64 to 3.31″ / 67 to 84 mm
Height: 0.3 to 0.4″ / 6.9 to 10 mm
Connectivity
Ports 1 x USB Type-C (5 VDC Power) Input
Wireless Protocol Bluetooth 5.0
Battery
Battery Type 1 x Built-In
Capacity (mAh) 1000 mAh
Capacity (Wh) 7.74 Wh
Battery Runtime 6.4 Hours
Battery Chemistry Lithium-Ion
Voltage 6.0 to 8.8 VDC
Power
Operating Voltage 6.0 to 8.8 VDC
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
General
Mounting 1 x 1/4″-20 Female
Dimensions 6.9 x 2.9 x 1.5″ / 174.7 x 74.6 x 37 mm (Folded)
10.4 x 4.4 x 3.6″ / 264.5 x 111.1 x 92.3 mm
Weight 10.3 oz / 292 g
Remote
Packaging Info
Package Weight 1.44 lb
Box Dimensions (LxWxH) 7.75 x 4.5 x 3″
