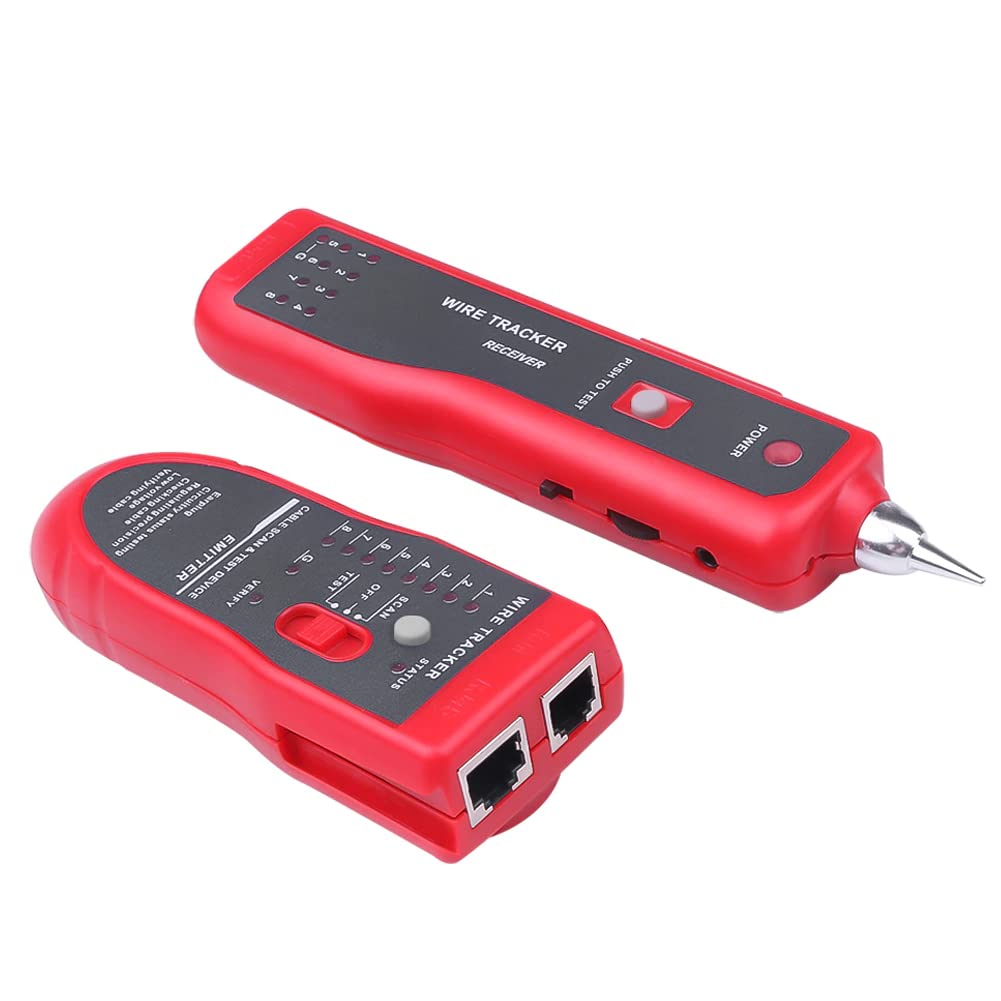

LAN Network Cable Tester Cat5 Cat6 RJ45 UTP STP Line Finder Telephone Wire Tracker Tracer Diagnose Tone Distance Cable Tester

Description:
1. 100% brand new
2. Streamlined design and easy to carry
3. Comes with earphones usable in noisy situation
4. Flexible and versatile interface
5. Sensitive and adjustable volume control
Cable Tester for UTP STP RJ45(manual switch)
Automatic efficient scan for the miss wiring, disorder cable, open and short circuit
TEL BNC test available(Adapter needed)
Remotely test cable up to 1000 ft in length ( remote kit included )
Protective power switch for low power consumption
High quality protecive case provides more secure protection
Judge continuity of the cables or wires
Track the cables or wires, and diagnose the break point
Receiver the tone signal on the cables or wires (telephone line)
Identify the state in the working telephone line (clear ring, busy)
Send a single solid tone or a dual alternating tone to the object cables or wires

Specification:
Working current: Tester: 10mA Receiver: 30mA
Signal transfe mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: 3Km
Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
Power: by 2 x DC 9V Battery( not included)

Package Include:
1 x Cable Emitter
1 x Cable Receiver
1 x RJ11 Cable
1 x Earphone
1 x Cable with Crocodile Clamp
1 x Instruction Manual
