Mini ZVS Induction Heating Driver
₨ 1,500.00
In stock
In stock
Description

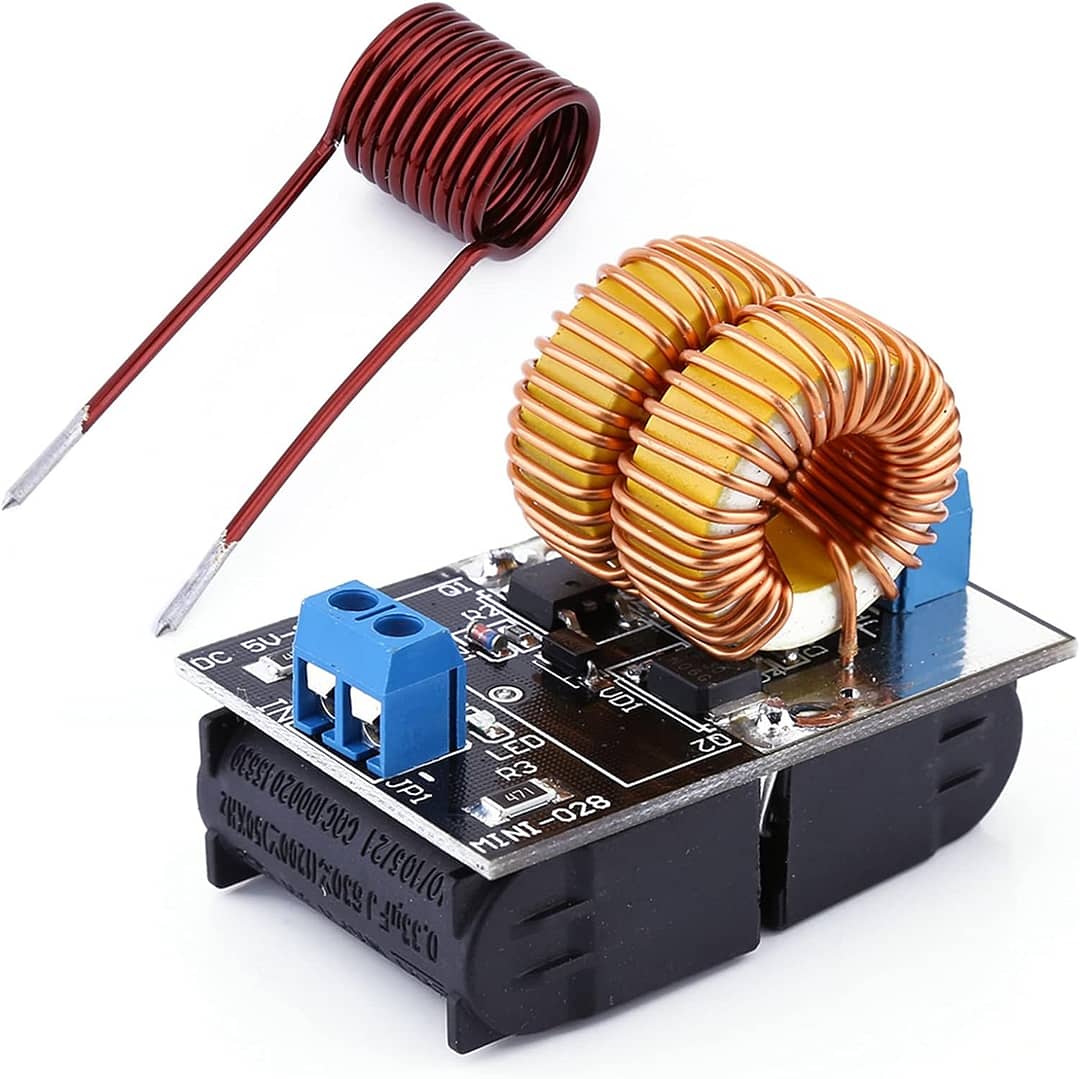

The Mini ZVS Induction Heating Driver Module is a compact, high-efficiency Zero Voltage Switching (ZVS) power driver designed for small-scale induction heating applications, DIY electronics experiments, and high-frequency power projects. It is widely used in laboratories, hobbyist projects, and educational demonstrations for wireless heating and resonant energy transfer.
Built using MOSFET-based resonant circuit technology, the module ensures efficient energy conversion with minimal switching losses. This allows the system to generate high-frequency alternating magnetic fields, which can rapidly heat conductive metal objects placed within the induction coil.
The mini ZVS driver is ideal for low to medium power induction heating setups, offering a safer and more compact alternative to full-size induction heating systems. It is commonly used for heating small metal tools, wires, screws, and for experimental Tesla coil or plasma-related projects.
Key Features
- Compact mini ZVS (Zero Voltage Switching) design
- High-efficiency resonant induction heating circuit
- MOSFET-based high-frequency switching system
- Low switching loss and improved thermal efficiency
- Stable oscillation with LC resonant tank circuit
- Suitable for small-scale induction heating applications
- Easy integration with DC power supply
- Compact PCB design for DIY and portable setups
- Ideal for experiments and educational use
- Supports continuous operation with proper cooling
Applications
- Mini induction heating systems
- DIY electronics experiments
- Small metal heating and softening
- Educational physics demonstrations
- Wireless energy transfer experiments
- Small Tesla coil experiments
- Laboratory research projects
- Hobbyist high-frequency power systems
- Electronics training kits
- Prototyping high-power resonant circuits
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Mini ZVS Induction Heating Driver |
| Operating Principle | Zero Voltage Switching (ZVS) |
| Input Voltage | Typically 12V – 24V DC (varies by model) |
| Input Current | Depends on load and coil configuration |
| Switching Device | MOSFET-based power stage |
| Output Type | High-frequency AC resonant output |
| Operating Frequency | Self-resonant (approx. 20kHz – 100kHz) |
| Coil Type | Induction heating copper coil |
| Efficiency | High-efficiency resonant conversion |
| Cooling Requirement | Heat sink and optional fan recommended |
| PCB Material | High-temperature FR4 board |
| Operating Mode | Continuous resonant operation |
| Protection | External protection recommended |
Safety Warning
- High current and high-frequency operation
- Do not touch coil during operation
- Use proper insulation and heat protection
- Ensure adequate cooling for MOSFETs
- Operate only if experienced with power electronics
Package Includes
- 1 × Mini ZVS Induction Heating Driver Module
Why Choose This Mini ZVS Driver?
The Mini ZVS Induction Heating Driver offers an efficient and compact solution for induction heating experiments and high-frequency power applications. Its resonant ZVS design reduces energy loss and improves performance, making it ideal for educational, experimental, and DIY electronics use. Despite its small size, it delivers strong heating capability when properly powered and cooled.
