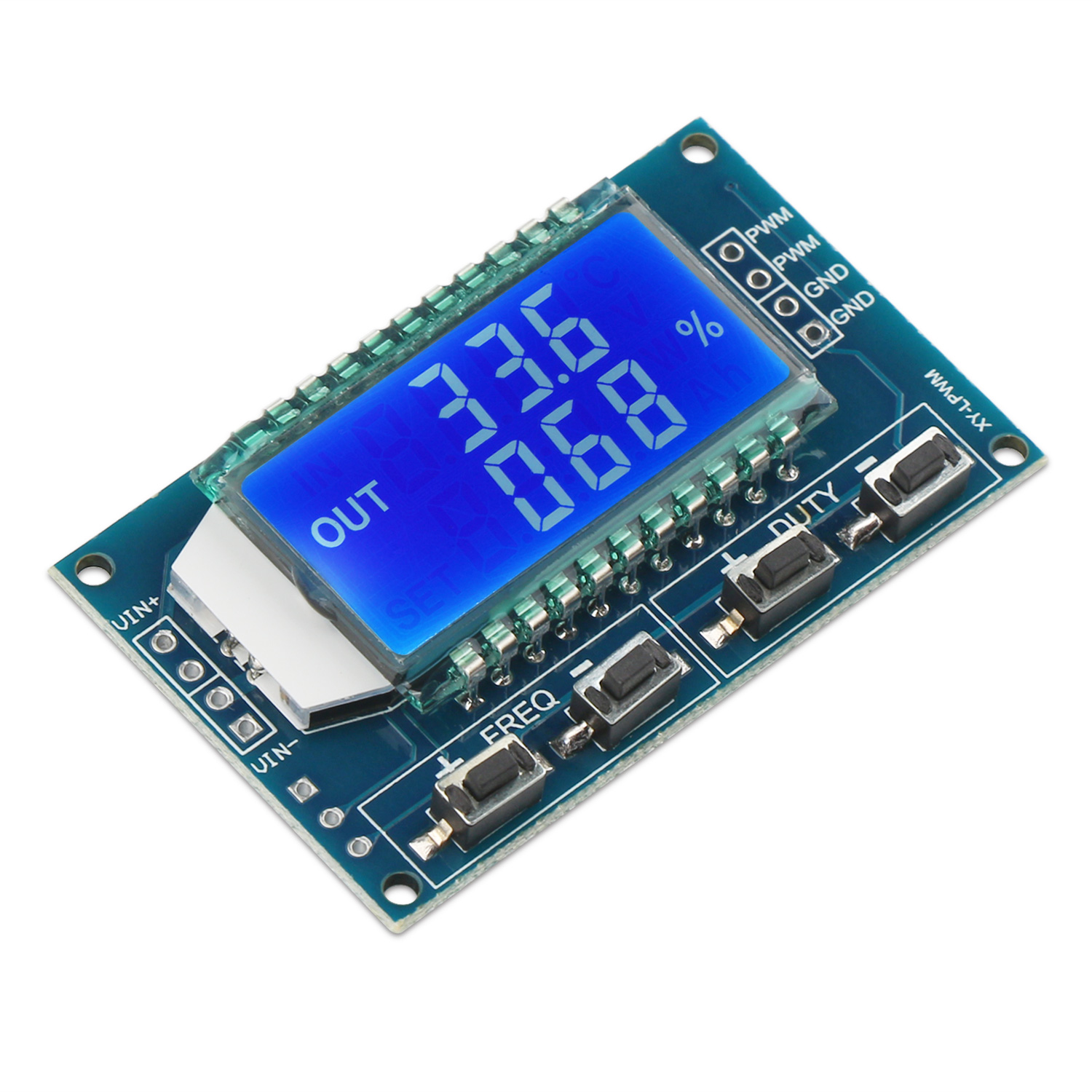

Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module
₨ 500.00
Out of stock
14
People watching this product now!
Description
It is a Signal Generator/PWM Pulse Frequency Duty Cycle Adjustable Module, Working voltage: DC3.3 ~ 30V; Frequency range: 1Hz ~ 150KHz; Application: motor driver, MCU, PWM dimming speed and other applications.
Parameters:
- 1. Working voltage: DC3.3 ~ 30V;
- 2. Frequency range: 1Hz ~ 150KHz;
- 3. Frequency accuracy: the accuracy in each range is about 2%;
- 4. Signal load capacity: the output current can be about 5 ~ 30ma;
- 5. Output amplitude: PWM amplitude equal to the supply voltage;
- 6. Ambient temperature: -20 °c ~ +70 °c
Application:
- 1. Used as a square wave signal generator, generate square wave signal for experimental development and use;
- 2. Used to generate a square wave signal that controls the motor driver;
- 3. Generate adjustable pulse for MCU use;
- 4. Generate adjustable pulse, control the relevant circuit (PWM dimming speed and other applications).
Package Includes:
- 1 x PWM Signal Generator Module
