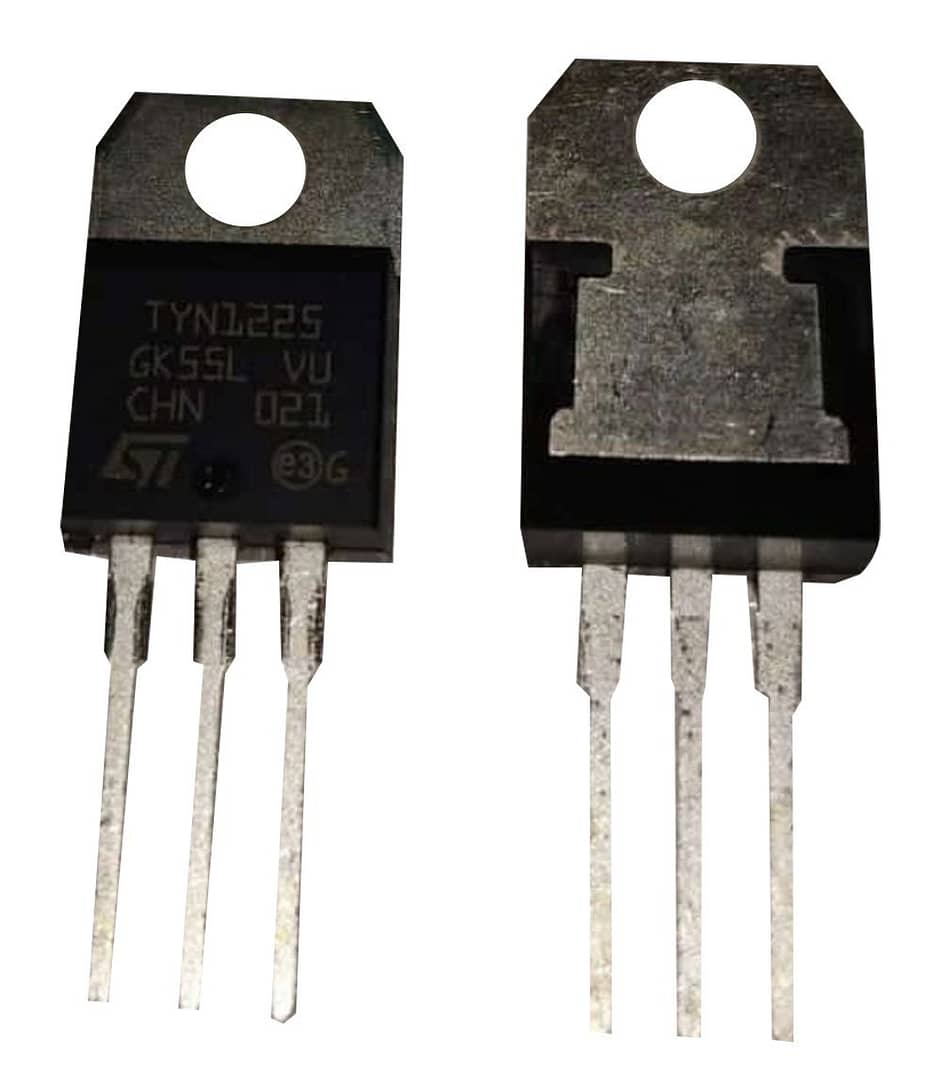

TYN1225 1200V 25A SCR Thyristor
₨ 40.00
In stock
Description
Description:-
The TYN1225 SCR standard 25 A SCRs are suitable for general purpose applications.
Using clip assembly technology, they provide a superior performance in surge current capabilities.
Features:-
On-state rms current, IT(RMS) 25 A
Repetitive peak off-state voltage, VDRM/VRRM 600 to 1200 V
Triggering gate current, IGT 40 mA
Insulated package TO-220AB Ins – Insulating voltage 2500 V rms – UL1557 certified
Specification:-
IT(AV): Average on-state current: 16A
IT(RMS): On-state rms current: 25A
ITSM: Non-Repetitive Peak On-state Current: 314A
Tj: Operating junction temperature range: -40 to 125°C
Tstg: Storage Temperature: -40 to 150°C
I2t: I2t Value for fusing: 450 A2S
VRGM: Maximum peak reverse gate voltage: 5V
IGM: Peak gate current: 1W
Product Includes:-
1x TYN1225 – 1200V – 25A SCR – Thyristor
