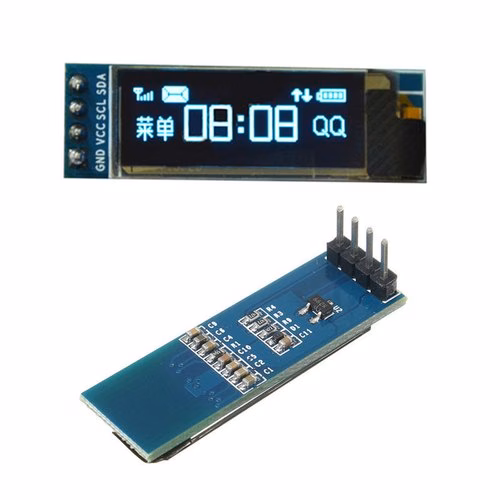

SPECIFICATION: 0.91 inch OLED Display Module
- Supply voltage: 3.3V-5V
- Pixel: 128*32
- Display size- 0.91 inch
- Operating temperature range: -40⁰C – +80⁰C
- Defaulting I2C address: 0x3C
- Color : Blue
- Super high contrast and brightness(adjustable)
- Low power consumption
FEATURES: 0.91 inch OLED Display Module
- Pixel Resolution: 128 x 32
- Character Color: Blue
- Background Color: Black
- PCB Size (mm): 38×12
APPLICATIONS: 0.91 inch OLED Display Module
Due to its capability in displaying, it is often used in various application for instances, smart watch, MP3, function cellphone, portable health device and many others.
Pin Discription -: 0.91 inch OLED Displays Module Datasheet
- GND: Power Ground
- VCC: Power + (DC 3.3 ~5v)
- SCL: Clock Line
- SDA: Data Line
Interface : 0.91 inch OLED Displays Module Datasheet
The 0.91 inch 128×32 Blue OLED Display Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle which is best in the industry.
0.91 inch 128×32 Blue OLED Display Module offers 128×32 pixel resolution. They feature much less thickness than LCD displays with good brightness and also produce better and true colors.
These OLED Display Module are very compact and will add a great ever user interface experience to your Arduino projects. The connection of this display with Arduino is made through the I2C(also called IIC) serial interface. 0.91 inch 128×32 Blue OLED Display Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply.
OLEDs are the longer term of displays, as they possess a number of the best advantages over both the traditional display technologies of LCDs and LED. The most attractive thing about using the OLED display is that they don’t need a back-light like conventional LCD & LED screens. The organic material itself has a property known as Electroluminescence (EL), this causes the material to “glow” when stimulated by the current or an electric field. This is the Best energy-saving displays ever.
This 0.91” 128*32 Blue OLED Module offers 128*32-pixel resolution. They are featuring much less thickness than LCD Displays with good brightness and produce better and true colors.
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C
(also called as IIC) serial interface.
The 0.91” 128*32 Blue OLED Display Module produces blue text on black background with very good contrast when supplied with 3.3V-5V Supply. The OLED Display Modules also offers
a very wide viewing angle.
Setting up SPI/I2C Connection with GMS096A OLED Module Being a new entry to the market, only limited resources are available on this small piece of miracle (GMS096A). I2C/SPI configuration always demands helpful resources as in any case.
For the SPI setup, the module comes in 4 wire SPI configurations by default and to make it work with the Arduinos you can use these libraries from Adafruit. For the I2C setup it demands a little bit of work on the module. It was one of our customers who shared these simple configuration steps with us, start with reordering the resistor from position R3 to R1 and then short the R8 resistor with some solder tin (0 Ohm resistor). The R6 and R7 pullup resistors are already soldered, nothing to do there.
OLED display, no need backlight, self-illumination, the display performance is best than the normal LCD display, also lower consumption. I2C interface, requires only two signal pin. It Comes with development resources and manual Available in 0.91 inch Oled Display module datasheet at rajguru electronics. (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).
