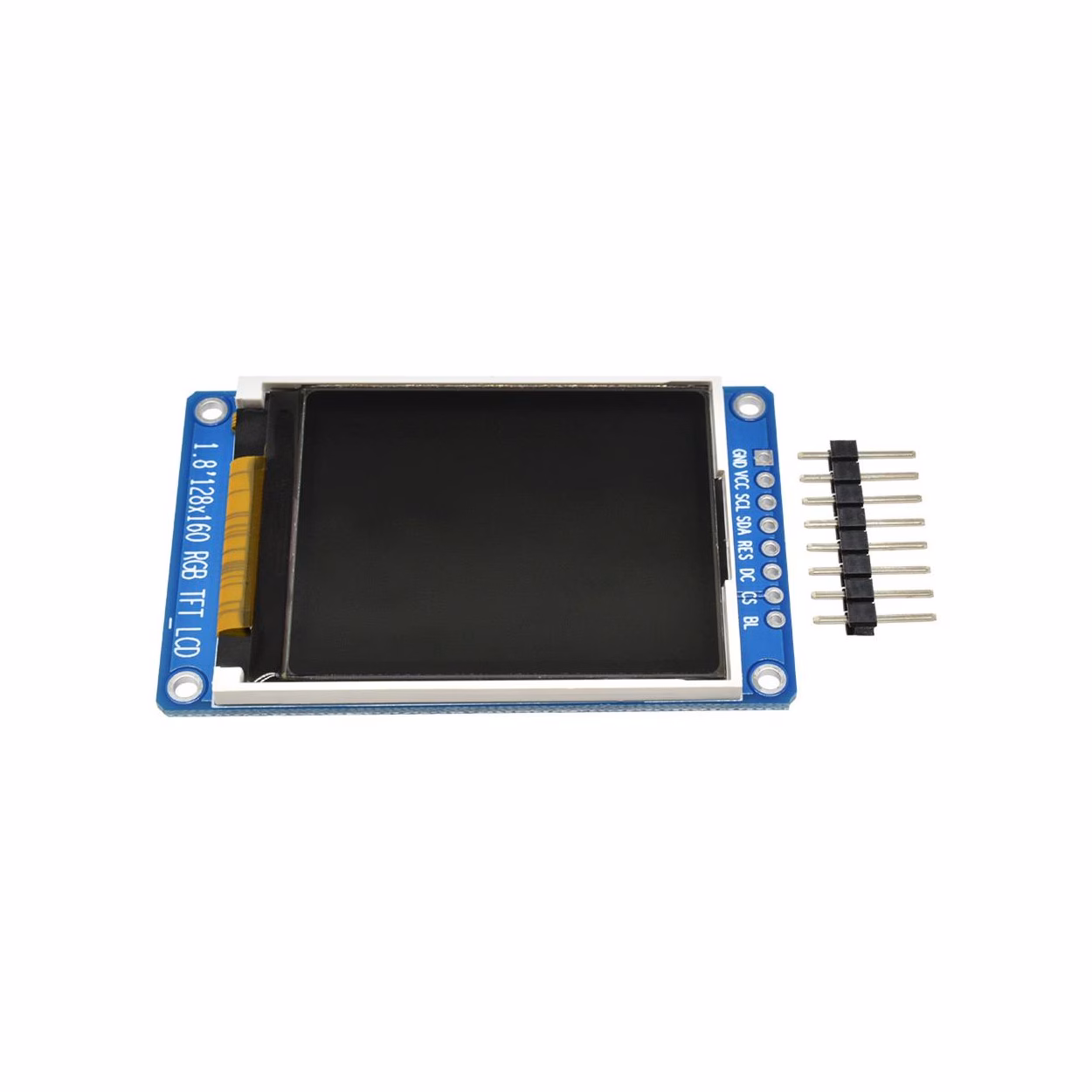

1.8″ inch Full Color 128×160 SPI Full Color TFT LCD Display Module
₨ 1,200.00
In stock
In stock
14
People watching this product now!
Description
Features
SIZE 1.8inch
Display Mode a-TFT
Display Format Graphic 128RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 35(W)*56 (H)*3.45+/-0.1(T)mm
Resolution 128RGB*160 Dots
LCD Active area 28.03 (W)*35.04 (H)
Pixel size 0.219(W)*0.219(H)
Viewing Direction 12 o’clock
Operating Temperature -20¡«70°C
2.Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
