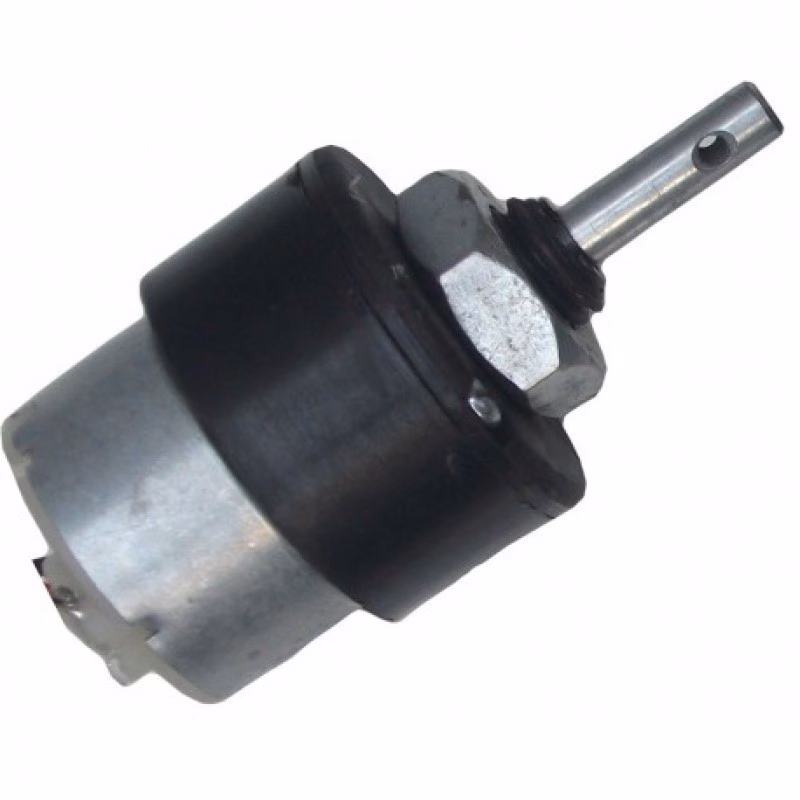

Metal gears are the most resistant to wear and damage. The gearbox is completely sealed and lubricated with lithium grease, so it doesn’t need to be serviced. The shaft is made of high-strength steel. The plastic body is durable enough to handle large loads. This motor requires no more than 12V of power to run. This motor’s torque range is roughly 2kg per cm.
RPM
10
Operating Voltage
12V DC
Gearbox
Attached Plastic (spur)Gearbox
Shaft Diameter
6mm with internal hole
Shaft Length
23mm
Torque
2 kg-cm
No Load Current
60mA max
Load Current
300mA max
