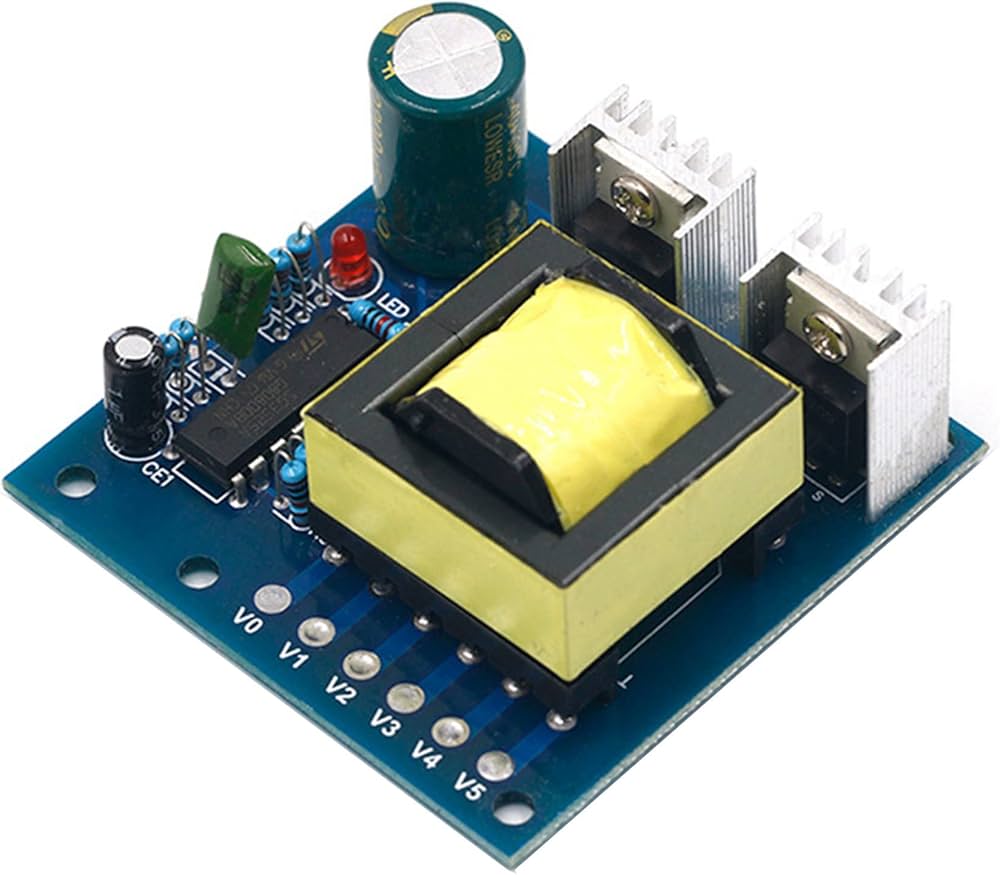

150W Car DC 12V to AC 110V 220V 20KHZ Power Inverter Charger Converter Boost Board high frequency square wave
₨ 1,100.00
In stock
Description
Features:Transform voltage from DC 12V to AC 110V 220V.Output waveform: frequency square wave.Adopt high quality PCB board, durable for use.Mainly used for electronic DIY work before the inverter stage.Specifications:Power: 150WInput: DC 12VQuiescent Current: 0.05A aroundOutput Waveform: Frequency Square WaveOutput Frequency: 20KHz aroundProtection: No ProtectionSize: 5.8 * 5.8 * 2.6cm / 2.3 * 2.3 * 1inWeight: 72g/ 2.55ozNote:1. The board is high frequency square wave AC output so it can not drive general inductive electric appliances, such as electromotor, electric fan, coil transformer, etc.2. When connected with small load(LED light, phone charger, etc.), please connect to the gear of low output voltage: 172V or 200V.3. When work for a long time under large load, suggest to strengthen the cooling fin.4. Don’t connect the power reversely, and the power supply and power cable should be with enough large current.5. Don’t overload or short circuit the output.6. High frequency output low voltage measured by multimeter will display higher(it’s not correct, not the actual voltage).The default output voltage wiring as follows(just for reference):V0-V2=110V V0-V3=172VV0-V4=200V V0-V5=220VV5-V4=20V V5-V3=45VV5-V2=110V V4-V3=28VV4-V2=90V V3-V2=62VPackage List:1 * Inverter Boost Module
