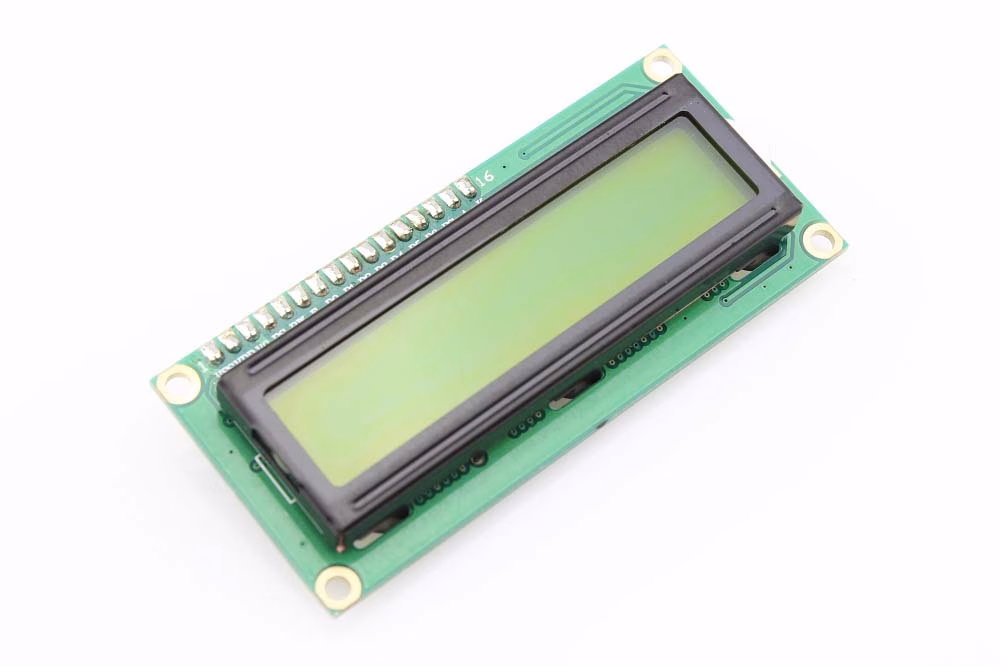

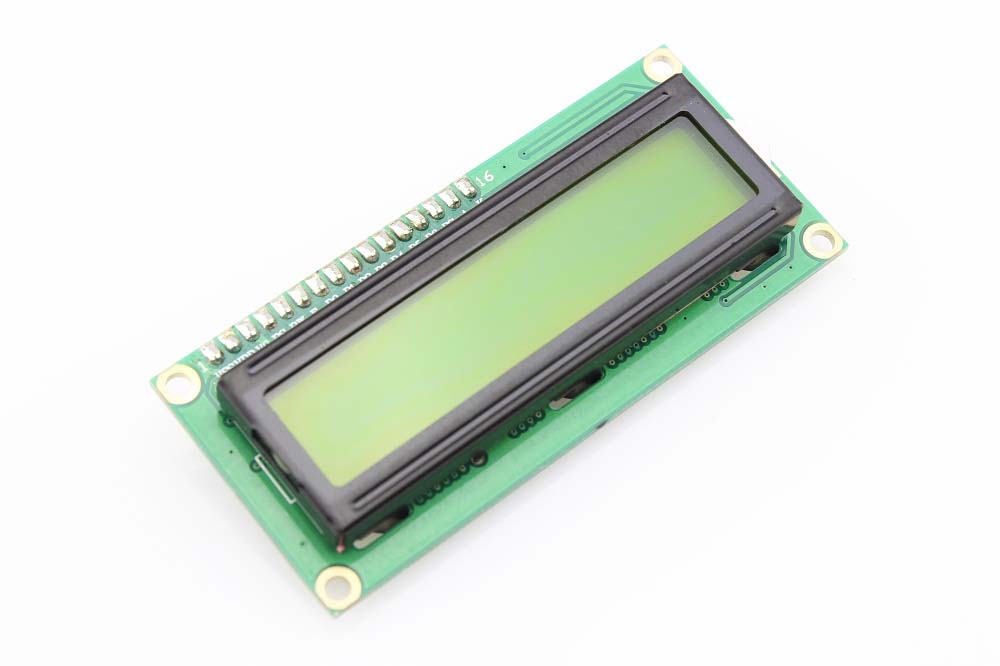

1602 LCD Module
₨ 300.00
In stock
Description
16 * 2 Lcd module is 16 characters wide and 2 row character Lcd module made of high quality material. It has 16 pin connecter with blue black light. It can be easily controlled by MCU and can be used in any embedded systems, industrial device and hand held equipment’s.
Color
Black + Green
LCD Size
About 2.6inch
Display Format
16×2 Character
Interface
6800 4-bit Parallel , 6800 8-bit Parallel
Connection
Pin Header
Visual Area
64.50×14.50mm
Active Area
55.45×10.85mm
Character Size
2.95×5.15mm
Dot (Pixel) Size
0.55×0.50mm
Dot (Pixel) Pitch
0.60×0.55mm
IC Package
COB
Display Type
STN-LCD Blue
Touch Panel Optional
No
Sunlight Readable
No
Response Time(Typ)
No
Contrast Ratio(Typ)
No
Colors
No
Viewing Angle Range
No
Brightness(Typ)
No
Viewing Direction
0.25
Backlight Current (Typ)
15mA
Power Supply(Typ)
3.3V, 5V
Supply Current for LCM(Max)
1500uA (Vdd = 5V ), 1250uA ( Vdd = 3.3V)
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
