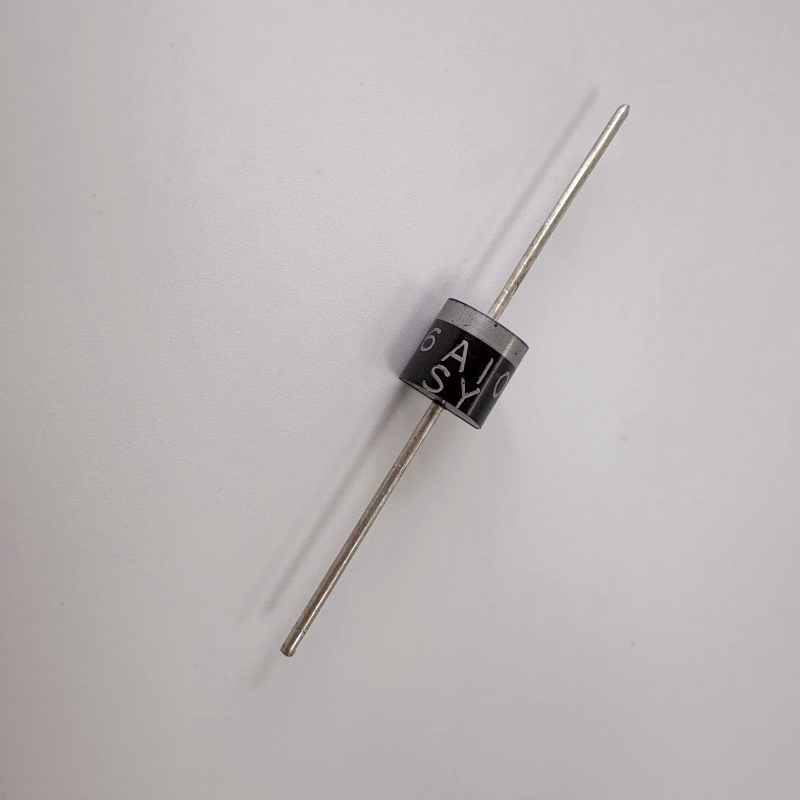

6A10 Diode 6A

6A10 diode is a 1000 Volt 6 Ampere Power Diode that provides uncontrolled power rectification and is used in applications such as battery charging and DC power supplies as well as AC rectifiers and inverters. Due to their high current and voltage characteristics, they can also be used as free-wheeling diodes and snubber networks.

Specification:

• Average forward current is 6A
• Forward voltage is 900mV
• Non-repetitive Peak  current is 400A
• Peak Reverse current is 10uA
• Repetitive reverse voltage is 1000V
• Available in DO-201 Package

Package Include:

1 x 6A10 Diode

The 6A10 diode is a type of rectifier diode. It is commonly used in electronic circuits to convert alternating current (AC) into direct current (DC). The “6A” in the name refers to its maximum forward current rating, which is 6 amperes. This means the diode can handle currents up to 6A without getting damaged. The “10” in the name indicates its peak repetitive reverse voltage rating, which is 1000 volts (10 times 100 volts). This means the diode can withstand reverse voltages up to 1000V.

The 6A10 diode is typically available in a standard package called R-6 or DO-15, which has a cylindrical shape and two leads. It follows the standard color coding convention, where the cathode (negative terminal) is marked with a band or stripe. When connected in a circuit, the diode allows current to flow in one direction (forward bias) while blocking current in the opposite direction (reverse bias). This property makes it suitable for various applications, such as power supplies, rectifiers, and voltage clamping circuits.
