24V 15A SMPS 360W AC-DC Metal Power Supply

Category: SKU: 0840

 2,090.00  2,200.00

(0 reviews)

In stock

Description

Description

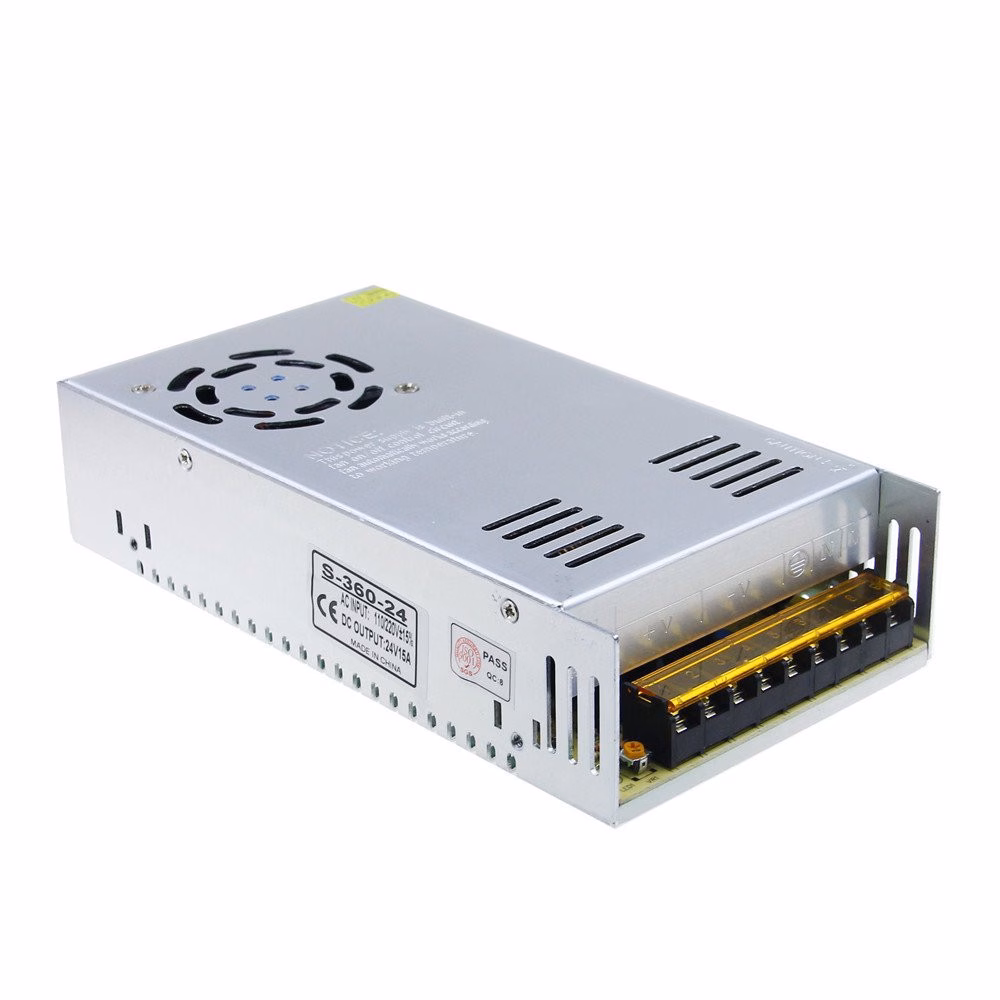

This is the switched mode power supply (SMPS) which convert 100-250V AC to 24V DC. It can provide upto 15A maximum current. All type of protections are provided in the supply. This power supply is built has built-in fan on/off control circuit. The Fan automatically works according to the working temperature.

Features

  • Output Over Voltage Protection, Over Current Protection, Short Circuit Protection and Surge Protected output are provided.
  • Universal AC Range
  • Metal Case is provided
  • No Minimum load is required
  • High Efficiency, Reliability & low energy consumption
  • This power supply is built has built-in fan on/off control circuit. The Fan automatically works according to the working temperature.
SPECIFICATIONS
Input Voltage 100V-250V AC 50 / 60Hz
Output Voltage 24V DC, 15A
Protections Output Over Voltage Protection, Over-Current Protection, Short Circuit Protection, Surge Protected Outputs
Dimensions (LxWxH) 210x115x50 (mm)
Weight  750 gm
