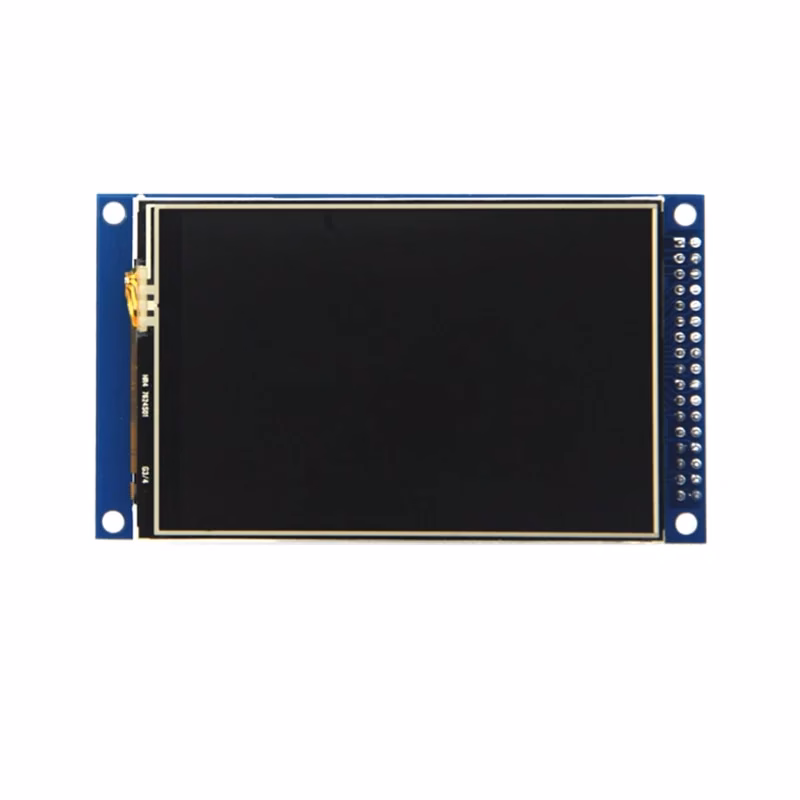

3.5 inch LCD screen module Ultra HD 320X480 ILI9486/ILI9488 for STM32
We would like to inform you that our store and delivery services will remain closed Till
Oct 25 due to some unavoidable circumstances.
Oct 25 due to some unavoidable circumstances.
10
People watching this product now!
₨ 2,500.00
In stock
Description
Directly pin-pin compatible with an Arduino Mega 2560 development board.
- 3.5-inch color screen, support 65K color display, display rich colors
- 320×480 HD resolution for clear display
- Fast transmission with 16-bit parallel bus
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Support Arduino Mega2560 direct plug-in use
- Provides an Arduino library with a rich sample program
- Easy to expand the experiment with SD card slot
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | MAR3513 |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 16-bit parallel interface |
| Active Area | 48.96×73.44 (mm) |
| Module PCB Size | 60.30×96.60 (mm) |
| Backlight | 6 chip HighLight white LEDs |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Product Weight(Package containing) | about 49(g) |
