4 channel 5v relay shield module, Four channel relay control board relay expansion board for UNO R3 mega 2560

SKU: 0226

Original price was: ₨ 600.00.Current price is: ₨ 500.00.

In stock

In stock

15 People watching this product now!

Description

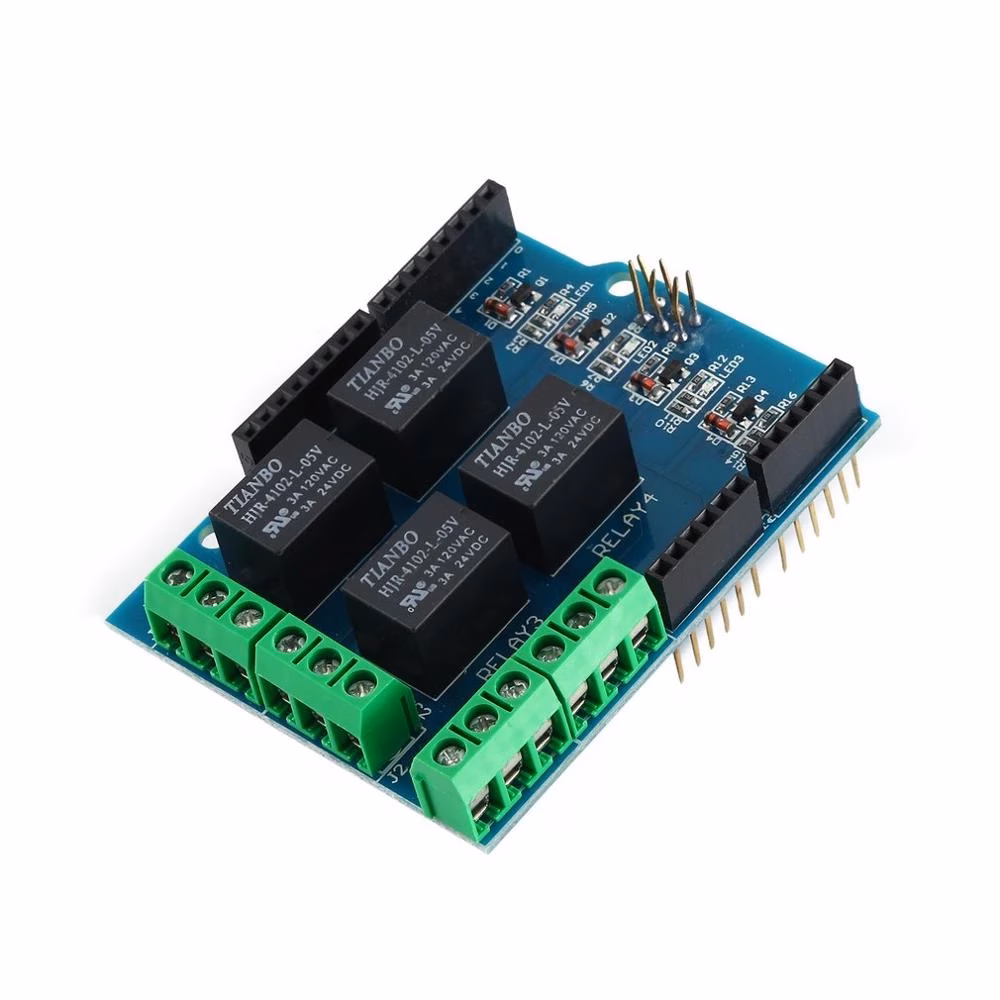

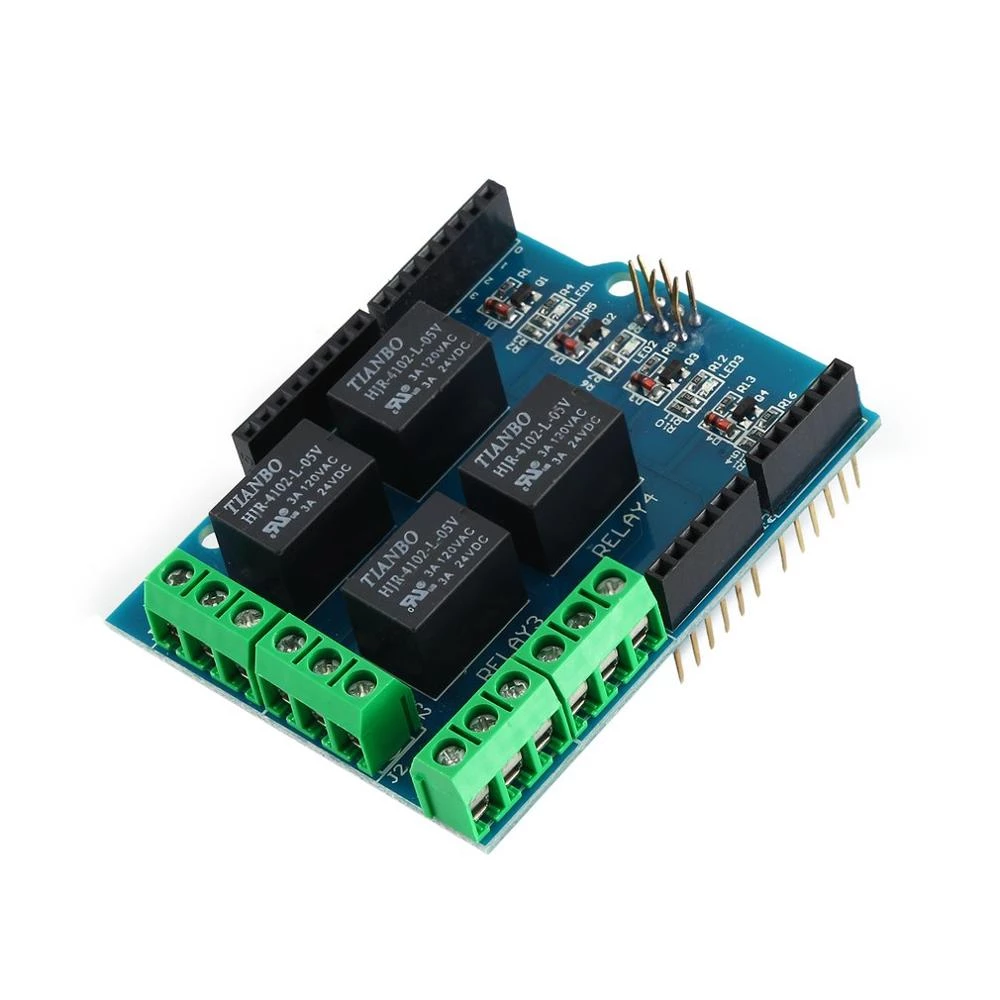

Description:This 5V 4 Relay Shield Module is a small current signal control power equipment commonly used electronic module, enabling high-power single-chip control devices are widely used in SCM system to make smart home project; and can be directly plugged into the compatible the use of various types of motherboards, eliminating the patch cable troubles.Features:1. Standard For Shield interfaces and shape2. Can continue to stack other For expansion boards3. 3 M3 screw positioning holes for easy installation4. High Drive (5V or 3.3V) normally open contact closure5. Onboard relay indicator (red)Note: When using the For UNO board connected to it, because UNO USB interface is extremely high, should avoid green terminals are shorted its shell.Relay Shield Interfaces:Relay: 5V DC relay, HJR-4102-L-5V, the Relay1 is be behalf of the 1st relay, the same for others.Power Interface: 5V DC PowerIndicator: four lights are red when the relay is driven high , the corresponding indicator will light up.Relay Terminals:Terminal high-power , high-current high voltage can be connected to the device . The 1st foot ( i.e. NOx) is a normally open pin , NCx pin is normally closed , COMx is common, i.e., when the relay is not driven , NOx and COMx open between two pins , NCx and COMx connection ; When the relay (x) control signal pin is high drive relays , NOx and COMx connection open between NCx and COMx.Package Included:1 * 5V 4 Channel Relay Shield (Without Arduino boards)
