5A Dual DC Motor Driver Module H-Bridge PWM Speed Controller 3V–14V
11
People watching this product now!
₨ 550.00
In stock
In stock
Description

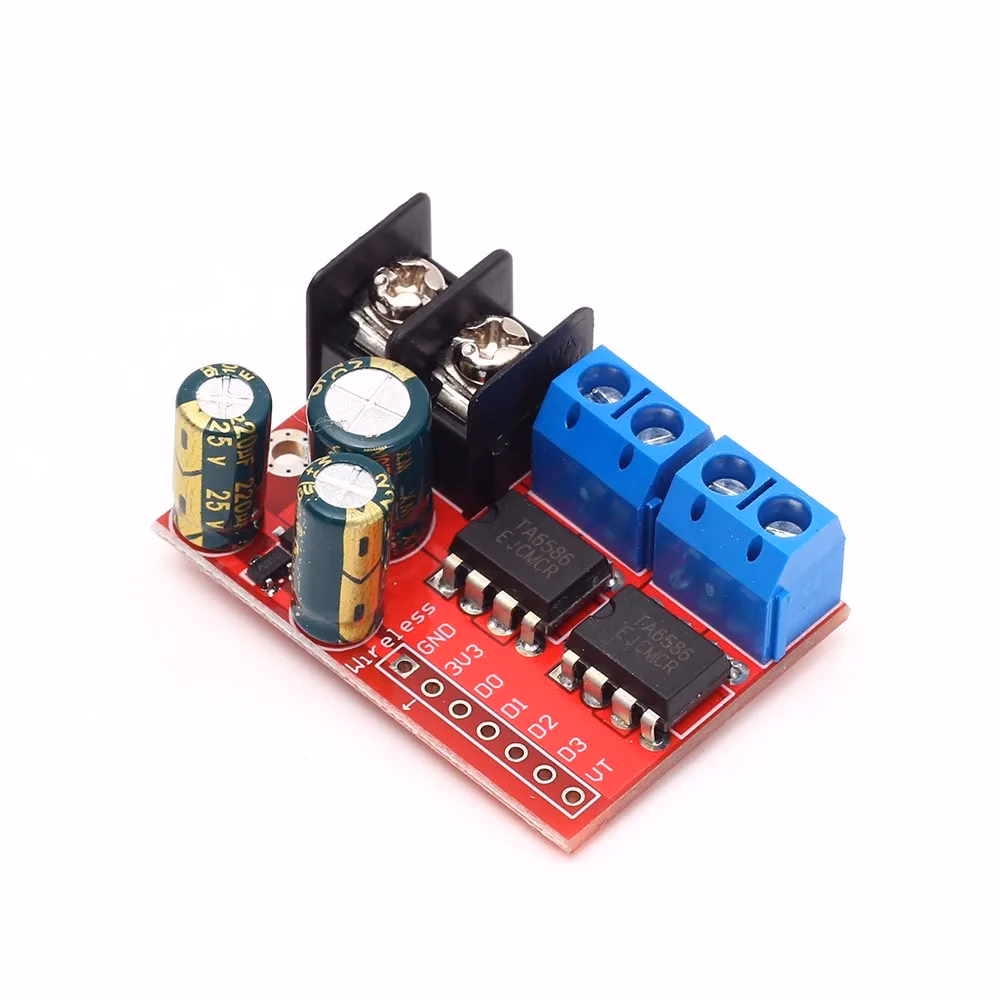

The 5A Dual DC Motor Driver Module is a high-power H-Bridge motor control board designed for controlling the speed and direction of two DC motors independently. Supporting an operating voltage range of 3V to 14V DC and a maximum output current of up to 5A, this module is ideal for robotics, RC vehicles, smart cars, automation projects, and other motor-driven applications.
The integrated H-Bridge design allows forward and reverse motor control, while PWM input support enables smooth speed regulation with high efficiency. Compared to standard motor driver modules, this high-current version provides improved power handling and stable performance for demanding applications.
Features
- Dual-channel DC motor driver
- H-Bridge design for forward and reverse motor control
- Supports PWM speed regulation
- Operating voltage range of 3V–14V DC
- Maximum output current up to 5A
- Independent control of two DC motors
- High efficiency and low heat generation
- Compact PCB design
- Suitable for remote control and automation projects
- Easy interface with microcontrollers and development boards
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Dual DC Motor Driver Module |
| Motor Channels | 2 Channels |
| Driver Architecture | H-Bridge |
| Operating Voltage | 3V – 14V DC |
| Maximum Output Current | 5A |
| Speed Control | PWM (Pulse Width Modulation) |
| Direction Control | Forward / Reverse |
| Motor Type | Brushed DC Motors |
| Control Interface | Logic Signal Input |
| Application | Robotics, RC Vehicles, Automation |
Applications
- Smart robot cars
- Remote control vehicles
- DIY robotics projects
- Automatic door systems
- Motorized mechanisms
- Educational electronics projects
- Industrial automation
- Conveyor and drive systems
- Arduino and ESP32 motor control projects
Package Includes
- 1 × 5A Dual DC Motor Driver H-Bridge Module
