- Charge and discharge status indication
- Built-in charging and discharging power MOS
- Input voltage: 3.7V~5.5V
- Charging current: up to 1A
- Output current: up to 1A
- Output voltage: 5V
- BAT discharge termination voltage: 2.9V
- Preset 4.2V charging voltage with an accuracy of ±1%
- Discharge efficiency: 85% (input 3.7V, output 5V/1A)
- Maximum 8uA standby current
- Integrated charge management and discharge management
- Intelligent temperature control and over temperature protection
- Integrated output overvoltage protection, short circuit protection, heavy duty protection
- Integrated overcharge and overdischarge protection
- Supports turbulence mode and zero voltage charging
-5%

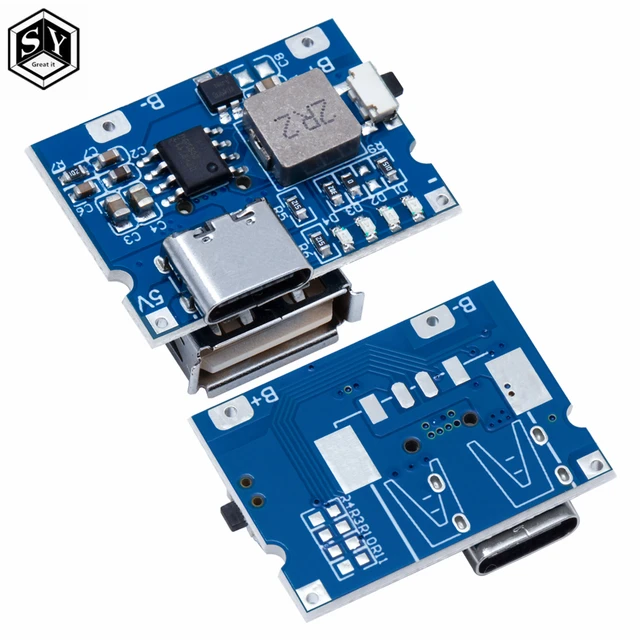

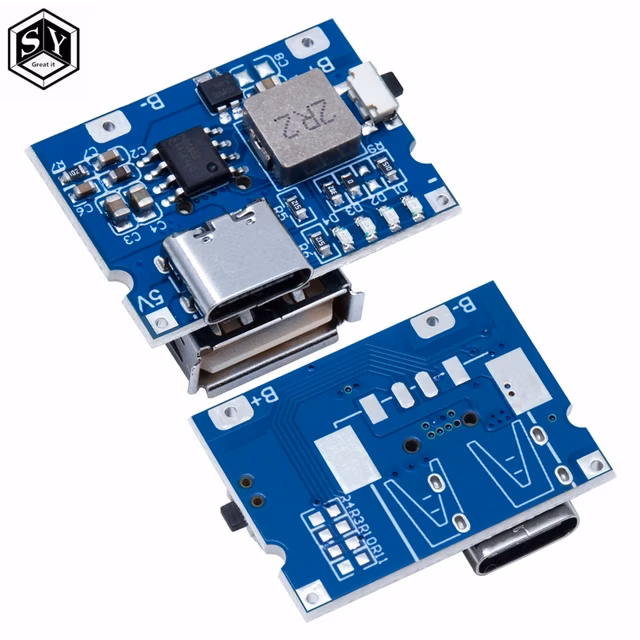

5V 2.4A usb TYPE-C Usb Boost Step Up Power Module Lithium LiPo Battery Charging Protection Board for DIY Charger
₨ 285.00
Out of stock
17
People watching this product now!
Description
Additional information
| Weight | 0.00 kg |
|---|
