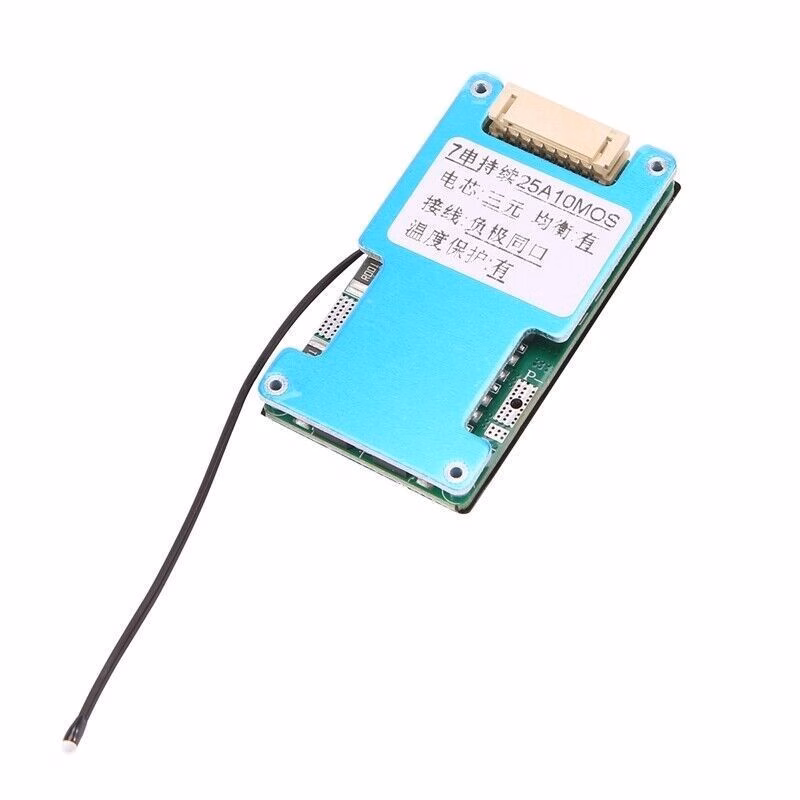

BMS 7S 25A Li-ion Lmo Ternary Lithium 18650 Battery Charge Protection

XR-67S-JH-V1. 0-G

Battery

Type

Ternary/seven strings/24V.

Wiring

Wiring mode.

Same mouth..

Over-discharge voltage of single battery.

2.7 V soil 0. 08V

Discharge

Continuous operating current.

25A

Instantaneous protection current.

60A

Overcurrent recovery condition.

Recharge to resume or disconnect the load

Short circuit recovery condition.

Recharge to resume or disconnect the load

Overcharge voltage of single battery

4.25 V士0.025V

Continuous charging current.

20A

Charge

Charge equalization voltage.

4.15 V $ 0.025 V.

Charge equalizing current.

40mA

Charger voltage.

30 V (recommended).

Over-

Charging overtemperature.

50°C

temperature protection

Discharge overtemperature.

70°C

Self-comption power consumption for operation

≤30UA

Internal resistance Main circuit conduction internal resistance

≤20m2

tempeature

Temperature range.

-40 to + 80 ° C.

Line break protection

Wire break protection.

Have

Wire arrangement

Wire arrangement size.

2.0MM Pitch/40 CM long

Amerson

Product appearance dimensions

60*33*7MM
