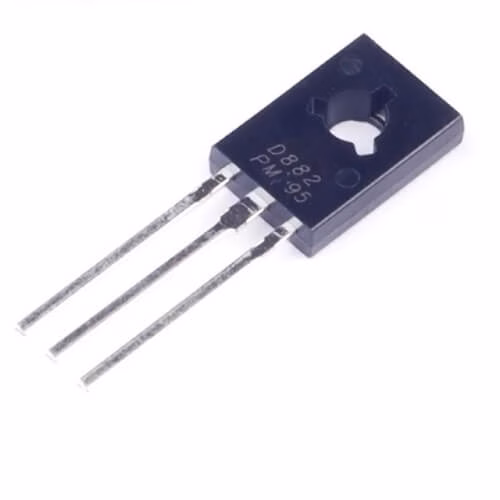

D882 Transistor

The D882 is a medium power NPN transistor that features a high collector-emitter breakdown voltage and medium current carrying capability. It can also be mounted on a heatsink using the screw hole in the SOT-32 package.

D882 Pinout Configuration

Pin Number

Pin Name

Pin Description

1

Base

Current through this terminal controls conduction between collector and emitter

2

Collector

Current flows into this terminal

3

Emitter

Current flows out of this terminal

Features and Specifications

• High current and voltage capability (30V, 3A)
• Low saturation voltage
• Complement to B772
