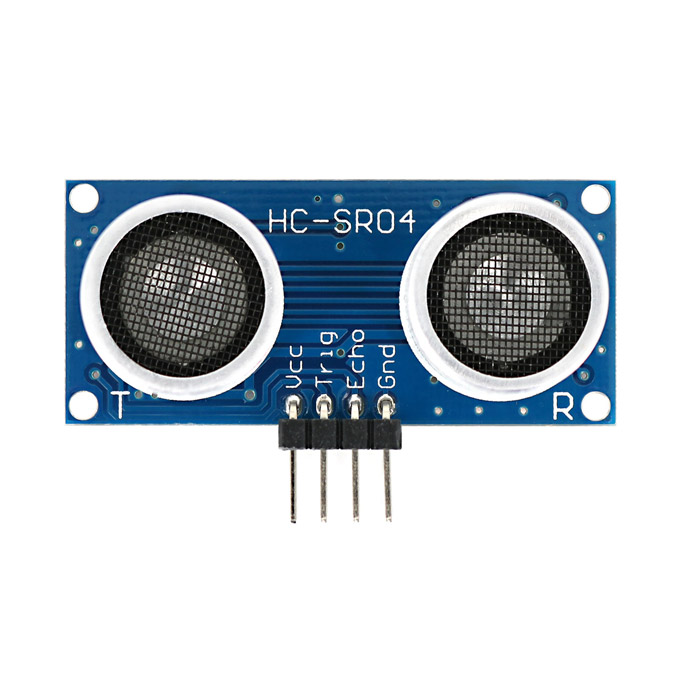

HC-SR04 Ultrasonic Sensor Module 3.3V–5V
₨ 250.00
In stock
In stock
Description
The HC-SR04 Ultrasonic Sensor Module is a compact and reliable distance measurement sensor designed for detecting objects and measuring distance using ultrasonic sound waves. It is widely used in Arduino, ESP32, Raspberry Pi, robotics, automation, IoT, and DIY electronics projects.
With a typical measuring range of approximately 2 cm to 400 cm, the HC-SR04 provides a simple and cost-effective solution for non-contact distance measurement.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | HC-SR04 Ultrasonic Sensor |
| Module Type | Ultrasonic Distance Sensor |
| Operating Voltage | 3.3V–5V DC |
| Measuring Range | Approximately 2 cm–400 cm |
| Interface | TRIG and ECHO |
| Detection Angle | Approximately 15° |
| Resolution | Up to 3 mm, application dependent |
| Sensor Type | Non-contact ultrasonic measurement |
| Communication | Digital Trigger/Echo |
| Application | Distance Measurement and Object Detection |
Features
- Wide operating voltage range of 3.3V to 5V
- Non-contact object detection and distance measurement
- Measuring range of approximately 2 cm to 400 cm
- Simple TRIG and ECHO interface
- Easy to connect with popular microcontrollers
- Compact module suitable for embedded and DIY projects
- Suitable for robotics, automation, and IoT applications
- Cost-effective solution for ultrasonic distance sensing
Applications
The HC-SR04 ultrasonic sensor can be used in a wide range of electronics and automation projects, including:
- Arduino distance measurement projects
- ESP32 and ESP8266 projects
- Obstacle avoidance robots
- Line-following and autonomous robots
- Smart parking systems
- Automatic doors and gates
- Object detection systems
- Water and tank level monitoring
- IoT and smart automation projects
- Robotics and embedded systems
- DIY electronics projects
How HC-SR04 Works
The HC-SR04 operates by transmitting an ultrasonic pulse through the transmitter. When the sound wave hits an object, it is reflected back toward the receiver. The microcontroller measures the time taken for the echo to return and calculates the distance to the object.
The module provides two digital pins for operation:
- TRIG: Used to initiate the ultrasonic measurement.
- ECHO: Outputs a pulse whose duration corresponds to the measured distance.
Compatibility
The HC-SR04 ultrasonic distance sensor is commonly used with:
- Arduino Uno
- Arduino Nano
- Arduino Mega
- ESP32
- ESP8266
- Raspberry Pi
- STM32
- Other compatible microcontrollers and development boards
Package Includes
- 1 × HC-SR04 Ultrasonic Sensor Module
