Home Computer Parts and Acessories Accessories HLK-5M12 220V to 12V 5W super compact intelligent household switching mode power module supply
220v 5V AC - DC isolated power supply module ₨ 650.00 ₨ 617.50
Back to products
HLK-PM01 AC-DC 220V to 5V mini power supply module,intelligent household switch power 3W supply module ₨ 600.00 ₨ 570.00

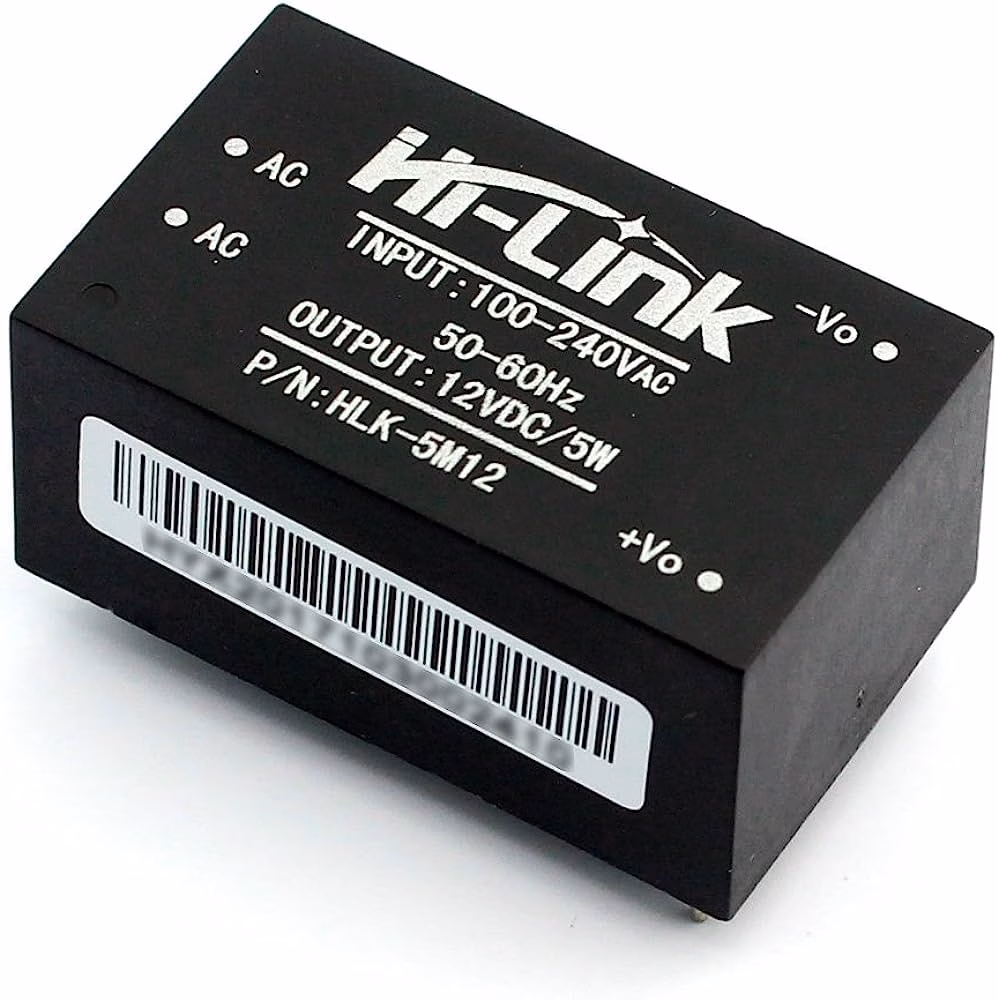

HLK-5M12 220V to 12V 5W super compact intelligent household switching mode power module supply

₨ 650.00 ₨ 617.50

In stock

Add to wishlist

Choose a wishlist or Create a new list

Add to wishlist
Compare
Compare
10 People watching this product now!
SKU: 0896 Category: Accessories

Share this:

  • Click to share on Twitter (Opens in new window)
  • Click to share on Facebook (Opens in new window)
Share:
  • Description
  • Additional information
  • Reviews (0)
  • Shipping & Delivery
Description
Product Features
  • Ultra-thin, ultra-small
  • Input voltage: 90 ~ 245V
  • Low power consumption, environmental protection, no-load loss <0.1W
  • Low ripple, low noise
  • Good output short-circuit and over-current protection and self-recovery
  • High efficiency, high power density
  • Input and output isolation voltage 3000V
  • 100% full load aging and testing
  • High reliability, long life design, continuous working time is more than 100,000 hours
  • Meet the UL / CE requirements: product design to meet EMC and safety test requirements
  • Moisture, vibration, water and dust to meet IP65 standards
  • No external circuit to work

Basic Parameters
  • Operating temperature: -25 ~ 60 ℃
  • Storage temperature: -40 ~ 80 ℃
  • Relative humidity: 5 ~ 95%
  • Cooling method: natural cooling
  • Atmospheric pressure: 80 ~ 106 Kpa
  • Altitude: ≤ 2000m
  • Vibration coefficient: 10 ~ 500Hz, 2G10min / 1cycle
  •                                     60min.each along X.Y, Z axes

Electrical Characteristics
  • Rated input voltage: 90 ~ 245Vac
  • Input voltage range: 85-264V
  • The maximum input current: ≤ 0.2A
  • Input surge current: ≤10A
  • The maximum input voltage: ≤ 270V
  • Input low voltage efficiency: Vin = 110Vac, output full load ≥69%
  • Input high voltage efficiency: Vin = 2200Vac, output full load ≥70%
  • Long-term reliability: MTBF ≥ 100,000H
  • External fuse Recommended: 1A / 250Vac
  • No-load rated output voltage: 12.0 ± 0.1Vdc
  • Full load rated output voltage: 12.0 ± 0.2Vdc
  • Short time maximum output current: ≥540mA
  • Long time maximum output current: ≥ 450mA
  • Voltage regulation rate: ± 0.2%
  • Load regulation: ± 0.5%
  • Output ripple and noise (mVp-p): rated input voltage, full output, with 20MHZ bandwidth oscilloscope, the load side and 10uf and 0.1uf capacitance test
  • Switch overshoot amplitude: (rated input voltage, output plus 10%) ≤ 5% V0
  • Output over-current protection: output maximum load of 110 ~ 150% A
  • Output short-circuit protection: Direct output when the normal short-circuit, short-circuit automatically removed to restore normal work (without damage to the whole machine)
  • ​Input Voltage and Load Characteristics
