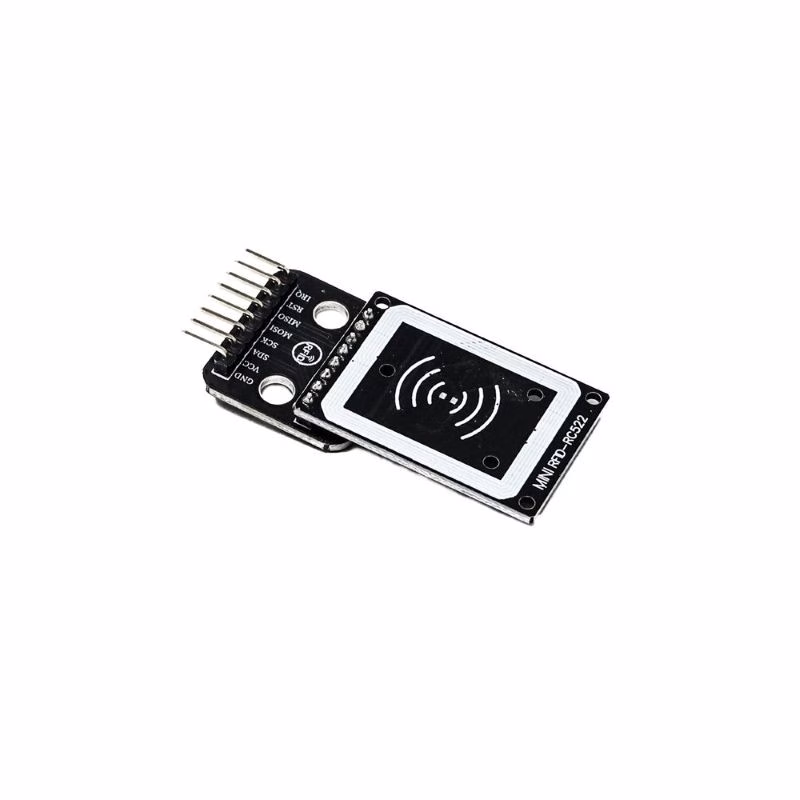

HS-S62-L RC522 NFC RFID Reader Writer Module 13.56MHz for Arduino & ESP32
₨ 1,200.00
In stock
In stock
Description
The HS-S62-L NFC Induction Reader/Writer Module is a compact and versatile RFID/NFC communication module based on the popular RC522 (MFRC522) chip. Operating at 13.56MHz, it enables contactless reading and writing of RFID cards, NFC tags, and MIFARE-compatible smart cards, making it ideal for access control, attendance systems, IoT projects, smart locks, inventory management, and embedded electronics applications.
Featuring an SPI communication interface, the module can be easily integrated with popular development platforms such as Arduino, ESP32, ESP8266, STM32, and Raspberry Pi. The RC522 controller provides reliable high-speed communication, low power consumption, and robust support for ISO14443A RFID standards.
With its compact PCB design, simple wiring, and extensive software library support, the HS-S62-L RC522 module is an excellent choice for students, makers, engineers, and developers building RFID-based automation and security systems.
Key Features
- RC522 (MFRC522) RFID/NFC controller chip
- 13.56MHz contactless communication frequency
- Read and write support for RFID and NFC tags
- Compatible with MIFARE and ISO14443A cards
- SPI communication interface
- Low power consumption design
- Fast and reliable data transmission
- Easy integration with Arduino, ESP32, ESP8266, STM32, and Raspberry Pi
- Compact PCB module for embedded applications
- Ideal for access control, attendance systems, and IoT projects
Applications
- RFID Access Control Systems
- Employee Attendance Machines
- Smart Door Locks
- NFC Authentication Projects
- Inventory Tracking Systems
- Contactless Payment Experiments
- IoT Security Applications
- Smart Card Readers
- Arduino Learning Projects
- Embedded Electronics Development
Technical Specifications
| Specification | Details |
|---|---|
| Model | HS-S62-L |
| RFID Controller | RC522 (MFRC522) |
| Operating Frequency | 13.56 MHz |
| Supported Protocol | ISO/IEC 14443 Type A |
| Supported Cards | MIFARE Classic, Ultralight, DESFire, S50, S70 |
| Communication Interface | SPI |
| Operating Voltage | 3.3V DC |
| Compatible Logic Levels | 3.3V (5V systems require level shifting) |
| Operating Current | 13–26mA |
| Idle Current | 10–13mA |
| Sleep Current | <80µA |
| Data Transfer Rate | Up to 10Mbps |
| Reading Distance | Up to 50mm (depending on card and antenna) |
| Operating Temperature | -20°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Module Size | Approx. 40 × 60 mm |
The RC522 supports ISO14443A communication, MIFARE card families, SPI/I²C/UART host interfaces, and typical read/write distances of up to approximately 50 mm depending on antenna design and tag type.
Pin Configuration
| Pin | Function |
| SDA (SS) | SPI Chip Select |
| SCK | SPI Clock |
| MOSI | SPI Data Input |
| MISO | SPI Data Output |
| IRQ | Interrupt Output |
| GND | Ground |
| RST | Reset |
| 3.3V | Power Supply |
Package Includes
- 1 × HS-S62-L RC522 RFID/NFC Reader Writer Module
- 1 × Header Pin Set
Why Choose the HS-S62-L RC522 Module?
The HS-S62-L RC522 module offers an affordable and reliable solution for RFID and NFC-based projects. Its compatibility with popular microcontrollers, support for MIFARE cards, and extensive community libraries make it one of the most widely used RFID modules for education, prototyping, and commercial applications. Whether you’re building an attendance system, smart lock, access control device, or IoT project, the RC522 provides dependable contactless communication performance.
