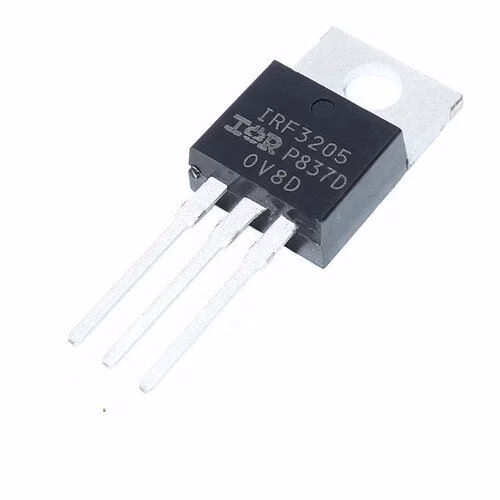

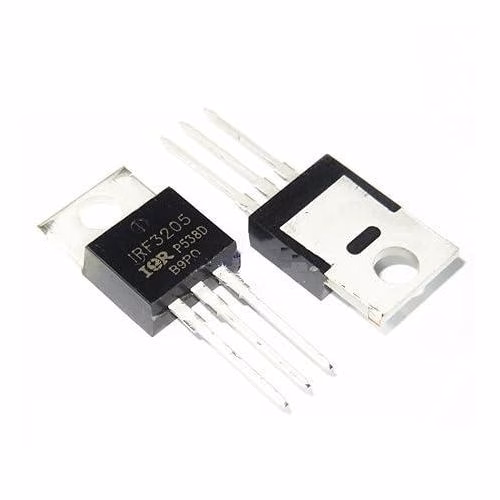

IRF3205 MOSFET
₨ 80.00
In stock
In stock
Description
The IRF3205 N-Channel Power MOSFET is a high-performance power transistor designed for high-current and fast-switching applications. Featuring an ultra-low ON resistance and high current handling capability, the IRF3205 is widely used in inverters, UPS systems, solar charge controllers, motor drivers, battery management systems, and DC-DC converters.
Its robust design ensures efficient power switching with minimal heat generation, making it an ideal choice for industrial, automotive, and DIY electronics projects. The TO-220 package provides excellent thermal performance and easy mounting with heatsinks for high-power applications.
Key Features
- N-Channel Power MOSFET
- Low RDS(on) for high efficiency
- High current handling capability
- Fast switching performance
- Suitable for PWM applications
- Excellent thermal stability
- Fully avalanche rated
- Easy-to-mount TO-220 package
Specifications
| Parameter | Value |
|---|---|
| Part Number | IRF3205 |
| MOSFET Type | N-Channel |
| Drain-Source Voltage (VDS) | 55V |
| Continuous Drain Current (ID) | 110A |
| Gate-Source Voltage (VGS) | ±20V |
| RDS(on) | 8mΩ (Max) |
| Power Dissipation | Up to 200W |
| Package Type | TO-220AB |
| Mounting Type | Through-Hole |
| Operating Temperature | -55°C to +175°C |
Specifications are based on manufacturer datasheets.
Applications
- Power inverters
- UPS systems
- Solar power controllers
- DC motor speed controllers
- Battery protection circuits
- High-current switching circuits
- SMPS power supplies
- Automotive electronics
- Robotics and automation projects
Pin Configuration
- Gate (G)
- Drain (D)
- Source (S)
Package Includes
- 1 × IRF3205 N-Channel Power MOSFET
Why Choose IRF3205?
The IRF3205 is one of the most popular power MOSFETs for inverter and high-current applications due to its low ON resistance, high efficiency, and reliable switching performance. It is widely used by electronics engineers, repair technicians, and hobbyists for power control projects.
