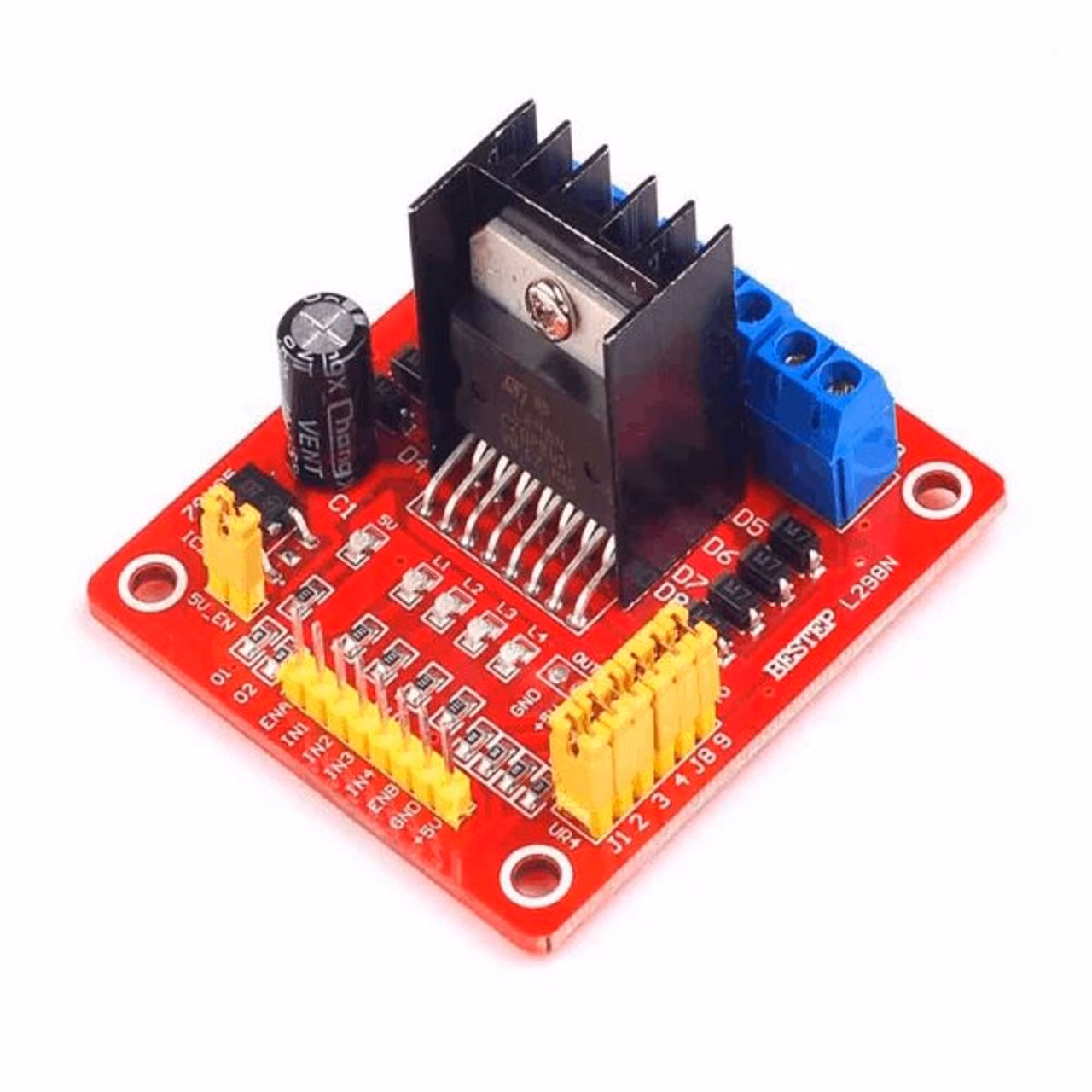

L298N DC Motor Driver Module Stepper Motor Board

L298N DC Motor Driver Module for Arduino

Start your engines with the L298N DC Motor Driver Module for Arduino. Featuring an H-bridge circuit enabling you to drive the motor in both directions, vary the speed of the motor and control two 3-30V motors simultaneously! The output Pins are clearly labeled “MOTOR-A” and “MOTOR-B” for quality of life.  Using the excellent L298N as the driver chip allows strong driving ability, low heat production, and strong anti-interference. Other functions include but are not limited to; control direction indicator, power indication, current detection, and a logic interface.

L298N Technical Specification:

– Chip: L298N (ST NEW)- Logic voltage: 5V- Driving voltage: 5V-35V- Logic current 0mA-36mA- Drive current: 2A (MAX single bridge)- Maximum power: 25W- Permissible temperature range. -20 ° C to 135 ° C- Size: approx 43 x 43 x 27mm
