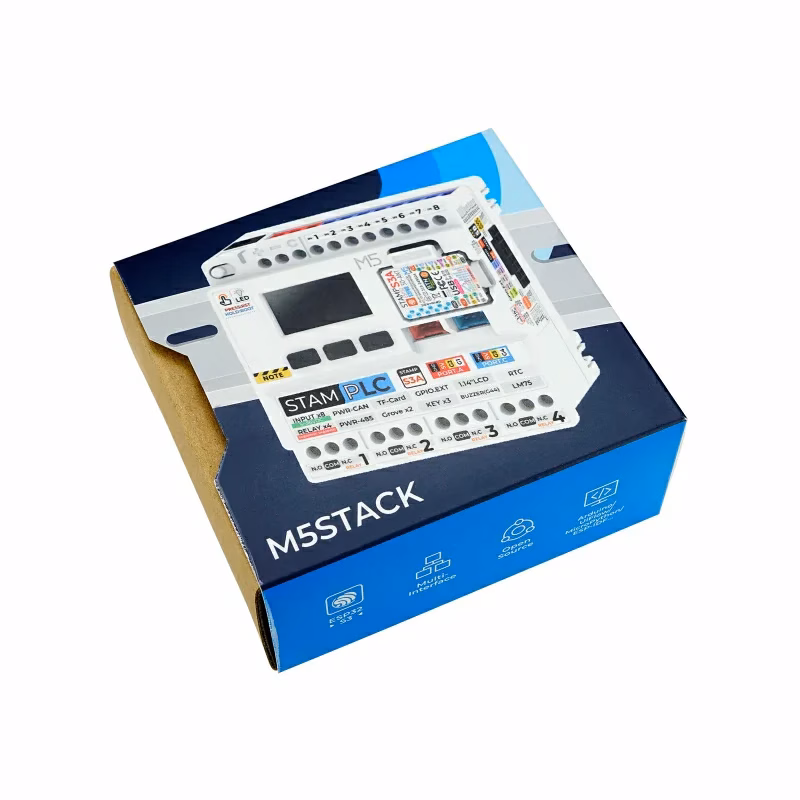

M5Stack StamPLC Controller with M5StampS3 | Industrial IoT PLC Controller
₨ 25,000.00
In stock
In stock
Description
The M5Stack StamPLC Controller with M5StampS3 is a powerful Industrial IoT Programmable Logic Controller (PLC) designed for automation, remote monitoring, smart manufacturing, and industrial control applications. Powered by the high-performance M5StampS3A module based on the ESP32-S3 processor, the controller combines industrial-grade reliability with wireless connectivity, making it ideal for modern Industry 4.0 solutions.
Equipped with 8 opto-isolated digital inputs, 4 relay outputs, RS485 and CAN communication interfaces, and a 1.14-inch color display, the StamPLC provides flexible control and monitoring capabilities for industrial environments. Its wide DC 6–36V power input, DIN rail mounting design, MicroSD card support, and onboard temperature and power monitoring sensors ensure dependable operation in demanding applications.
The built-in Wi-Fi connectivity enables seamless cloud integration, remote data collection, and real-time equipment monitoring. Compatible with UIFlow 2.0, Arduino IDE, and ESP-IDF, the M5Stack StamPLC is an excellent solution for engineers, automation professionals, and IoT developers seeking a compact yet feature-rich industrial controller.
Key Features
- Powered by M5StampS3A (ESP32-S3) controller
- 8 opto-isolated digital input channels
- 4 high-current relay outputs
- Integrated RS485 and CAN Bus communication
- 1.14-inch full-color TFT display
- Wide DC 6V–36V industrial power input
- Built-in MicroSD card slot for data logging
- Onboard temperature and voltage/current monitoring
- RTC (Real-Time Clock) support
- DIN rail mounting design
- Wi-Fi-enabled cloud monitoring and remote management
- Compatible with UIFlow 2.0, Arduino IDE, and ESP-IDF
- Suitable for Industry 4.0 and Industrial IoT deployments
Applications
- Industrial Automation Systems
- Smart Factory Solutions
- Remote Equipment Monitoring
- Building Management Systems
- Energy Monitoring & Control
- Process Automation
- Data Acquisition Systems
- Smart Agriculture
- Industrial IoT (IIoT)
- PLC-Based Control Projects
Technical Specifications
| Specification | Details |
|---|---|
| Controller Module | M5StampS3A (ESP32-S3FN8) |
| Processor | Dual-Core Xtensa LX7 up to 240MHz |
| Flash Memory | 8MB |
| Wireless Connectivity | 2.4GHz Wi-Fi |
| Digital Inputs | 8 Opto-Isolated Inputs |
| Input Voltage Range | DC 5V – 36V |
| Relay Outputs | 4 Channels |
| Relay Rating (AC) | 5A @ 250VAC |
| Relay Rating (DC) | 5A @ 28VDC |
| Communication Interfaces | RS485, CAN Bus |
| Expansion Ports | GPIO.EXT, 2 × Grove Ports |
| Display | 1.14-inch TFT Color Display |
| Display Resolution | 135 × 240 Pixels |
| Storage | MicroSD Card Slot |
| RTC | RX8130CE Real-Time Clock |
| Temperature Sensor | LM75 |
| Power Monitoring | INA226 Voltage/Current Sensor |
| User Controls | RESET/BOOT Button, 3 User Buttons |
| Audio Alert | Built-in Buzzer |
| Input Power | DC 6V – 36V |
| Installation | DIN Rail Mount |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 72 × 80 × 33.4 mm |
| Weight | 139.4 g |
Package Includes
- 1 × M5Stack StamPLC Controller
- 4 × Mounting Accessories
- 4 × Screw Clip Fasteners
Why Choose M5Stack StamPLC?
The M5Stack StamPLC delivers a unique combination of PLC functionality, ESP32-S3 processing power, wireless connectivity, industrial communication interfaces, and cloud integration. Its compact DIN-rail design, flexible I/O configuration, and industrial-grade features make it an ideal controller for automation engineers, system integrators, and Industrial IoT developers looking for a cost-effective and scalable control solution.
