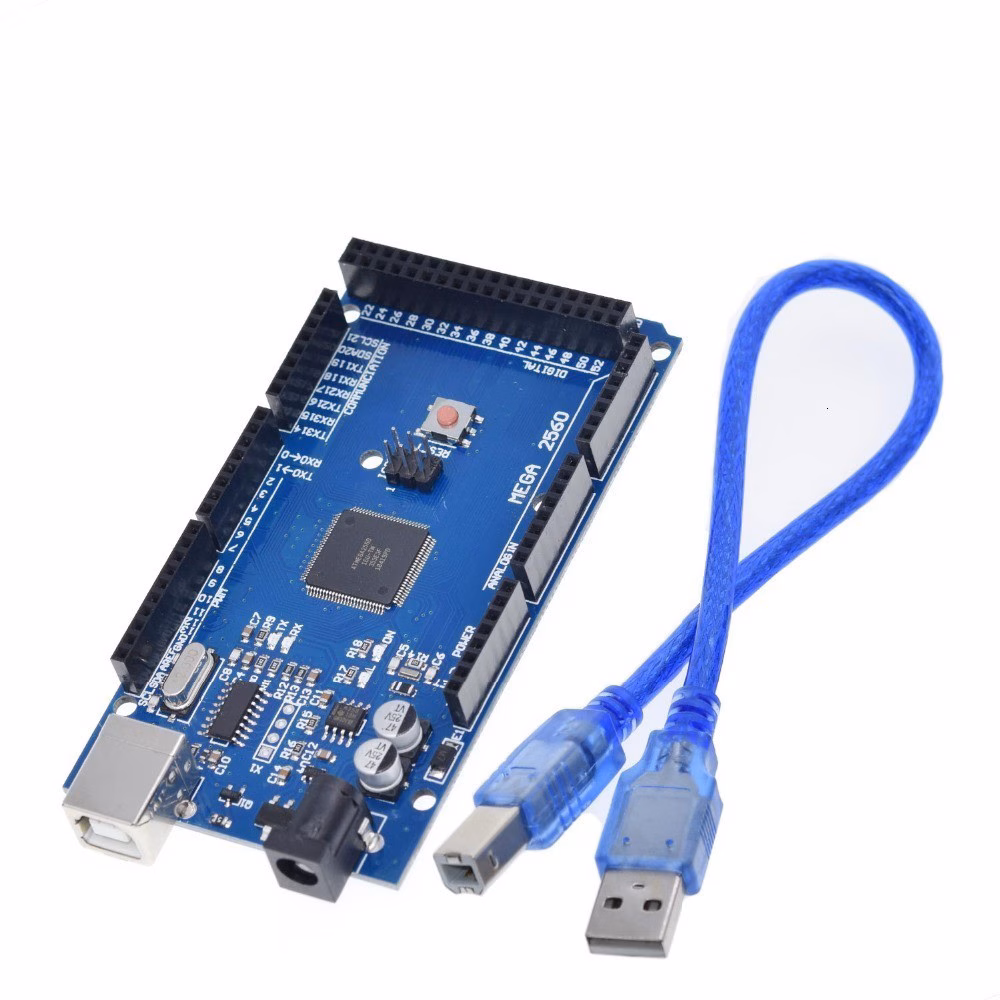

MEGA2560 R3 (ATmega2560-16AU CH340G) AVR USB board Development board with 30CM USB cable
₨ 1,800.00
In stock
In stock
Description
Description:
Mega 2560 Arduino follows Open-source principles, which means you can freely download the development environment and many associated resources.
Ideal for project work and often used in schools, teaching, motor control, robotics and similar applications; the Arduino platform allows for rapid application development using either Java (cross-platform) or Processing (a C derivative used to write sketches using Arduino IDE downloadable from Arduino.cc website.)
Input voltage should be limited to 6 ~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a voltage of 5V, and therefore readings may become unstable. If the voltage is greater than 12V, the regulator device may overheat causing damage to the control board. It is therefore recommended that you supply between 6.5 and 12V, utilizing typical power supplies of 7.5V or 9V.
Mega 2560 is fully compatible with the Arduino software and has complete hardware compatibility with the Mega 2560 Arduino Shield high-performance processor and enough memory to handle even complex solutions.
Specification:
Microcontroller
ATmega2560
EEPROM
4KB
Flash Memory
256 KB
SRAM
8
PWM Output Pins
15
Analog I/O Pins
16
Digital I/O Pins
54 digital input/output terminals (14 of which have programmable PWM outputs)
DC Current per I/O Pin (mA)
50
Architecture
Advanced RISC Architecture
Clock Speed
16 MHz
Input Voltage(Recommended)
7-12V
Operating Voltage
5V DC
Features:
- ATmega2560 Microcontroller.
- Boot-loader to allow downloading of ‘sketches’ via USB without having to go through other external writers.
- Powered from USB or via external PSU (not supplied). The device will automatically switch between power inputs.
- Heavy gold plate construction.
Package Included:
1 x MEGA 2560 R3 ATmega2560 MEGA2560 Development Board
