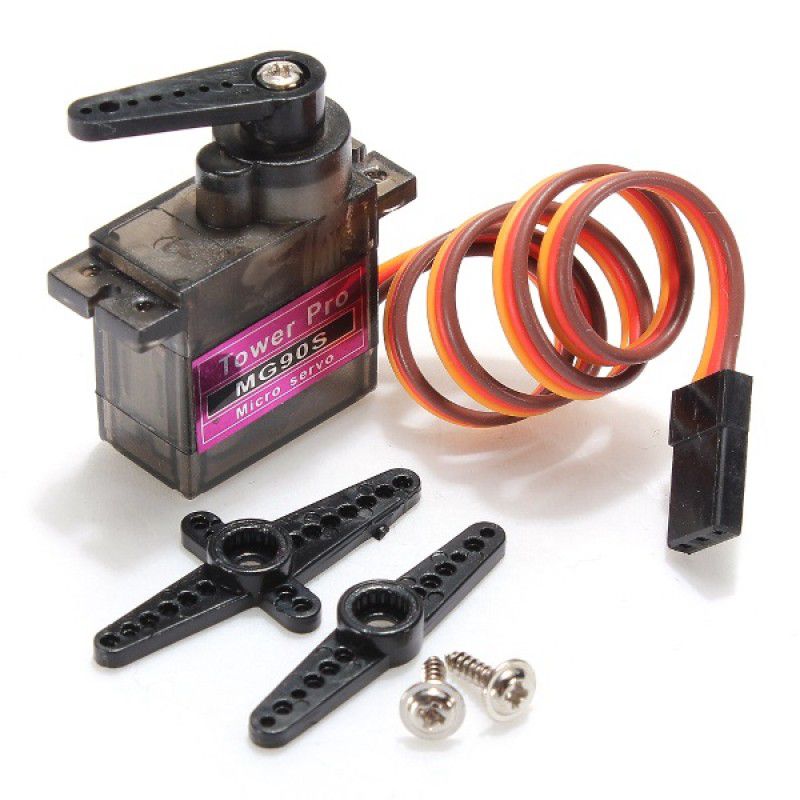

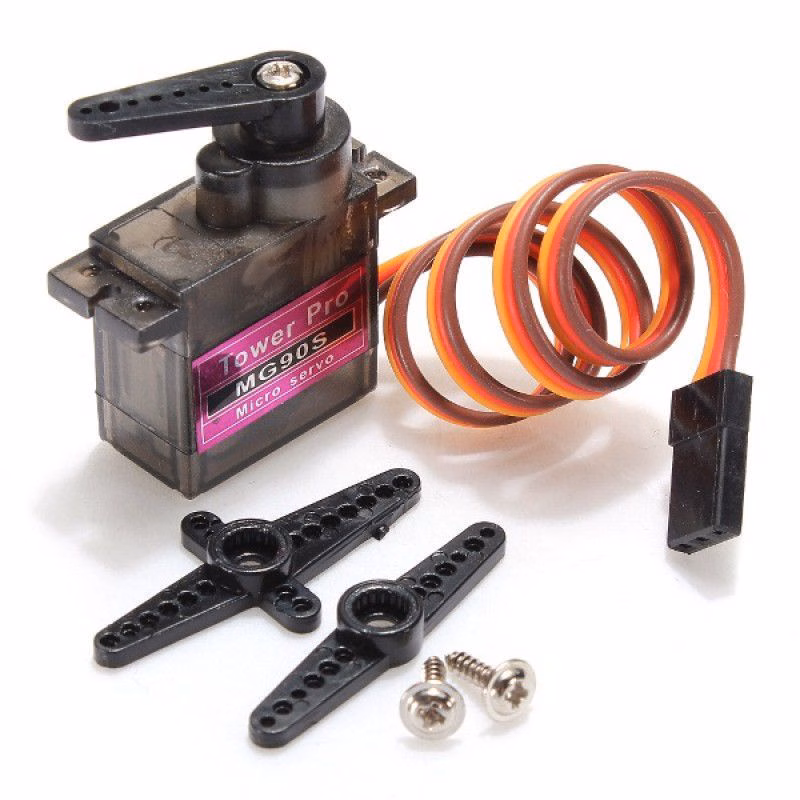

MG 90S Servo Motor

SKU: 0854

 380.00

In stock

14 People watching this product now!

Description

The MG90s servo is a metal  motor gear that is perfect for high-end application. It can rotate approximately 180 degrees.It comes with with 3 arms and screws and with pre-soldered female wires with over torque protection for durability . The  PWM (Signal) is Orange , VCC (Power) is Red , GND (Ground) is Brown . It can be used for making spider robot, biped robot etc

Model Number
MG90S  Servo

Material
Plastic

Gear Type
Metal

Operating Voltage
4.8 – 6.0 V

Stall torque (4.8V)
1.8kg/cm

Stall torque (6.6V)
2.2kg/cm

Operating speed (4.8V)
0.10sec/60degree

Operating speed (6.0V)
0.08sec/60degree

Temperature Range
 -30 to +60 Degree C

Dead Band width
5us

Servo Wire Length
25 cm

Color
Black

Rotation/Support
 Dual Bearings

Rated Voltage
5 V DC

Weight
13.4g

Size
22.8 x 12.2 x 28.5mm
