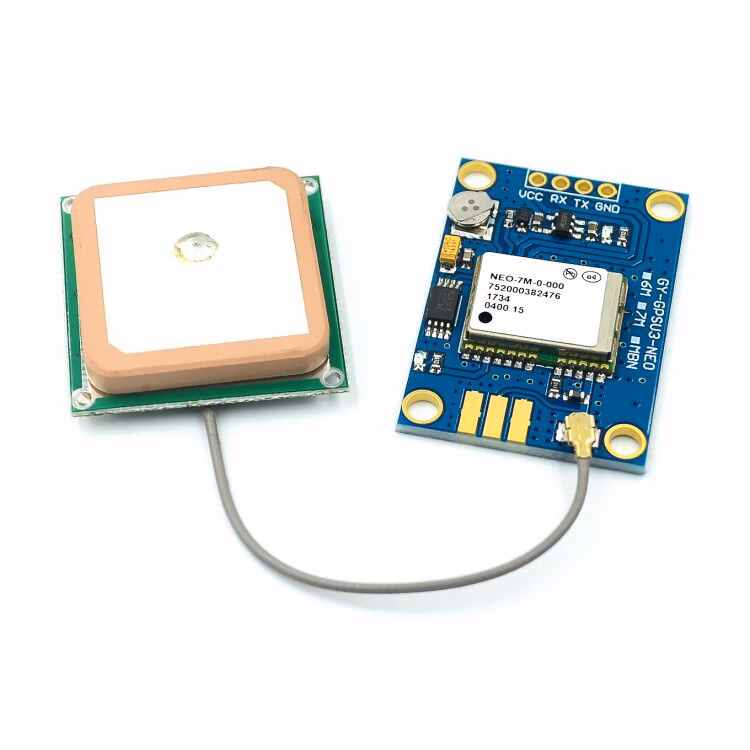

NEO 7M GPS Module

The U-blox NEO-7M GPS Module is ideal for all sorts of development boards, Arduino projects and more. It can operate on voltages between 3 and 6V DC, and has a simple serial output which blasts out the NMEA GPS data at 9600 baud.

Arduino users – this works perfectly with the TinyGPS++ library. With the 7M you can also extract navigation data with this Arduino library.

Specifications

• GPS modules NEO-7M, 3V-5V power supply
• Using imported u-blox NEO-7M-0-000 GPS module
• Module with ceramic destined antenna, signal super
• EEPROM power down to save the configuration parameter data
• With data backup battery
• There are LED lights
• High quality Immersion Gold PCB
• Antenna Size: 12x12mm
• Module Size: 23x30mm
• Installation Diameter: 3mm
• Supply Voltage: 3V-5V
• The default baud rate: 9600

Pinouts:

• GND – GND
• Vcc – connect to 5V or 3.3V
• TX – data from GPS module – connect to your board’s RX pin
• RX – data to the GPS module – connect to your board’s TX pin
• PPS – time pulse output
