Orange Pi 4 LTS 4GB LPDDR4+16GB EMMC Rockchip RK3399

Category: SKU: 0593

 20,000.00  25,000.00

In stock

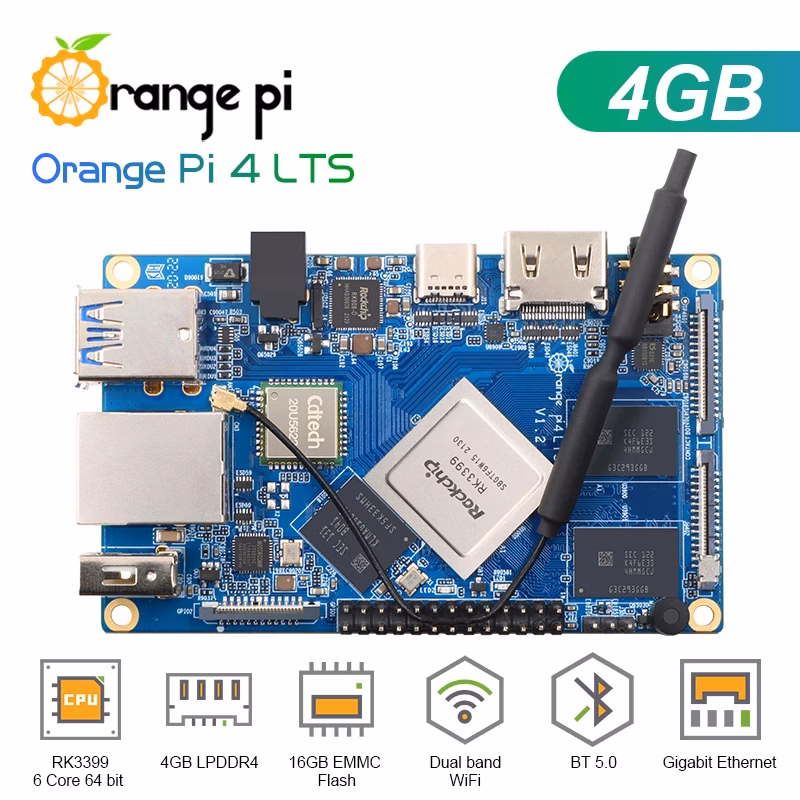

What’s Orange Pi 4?

It’s an open-source single-board computer. It can run Android 8.1、Ubuntu 16.04、Ubuntu 18.04、Debian 9 image. It uses the Rockchip RK3399, and equipped with Dual 4GB LPDDR4 , an optional 16GB eMMC flash

Hardware specification

CPU Rockchip RK3399 (28nm HKMG process)
6-core ARM® 64-bit processor ,main frequency speeds up to 2.0GHz
Based on the large and small size core architecture of big.LITTLE:
Dual-core Cortex-A72 (large core) + Quad-core Cortex-A53 (small core)
GPU Mali-T864 GPU
Supports OpenGL ES1.1/2.0/3.0/3.1,
OpenVG1.1,OpenCL, DX11, support for AFBC
Memory+Onboard Storage Dual 4GB LPDDR4 + 16GB EMMC Flash
On-board WIFI+Bluetooth AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0
Network 10/100/1000Mbps Ethernet( Realtek RTL8211E )
Audio Output: 3.5mm Jack and HDMI2.0a
Input: MIC
Video Outputs 1 x HDMI 2.0 ( Type-A ), Supports 4K@60fps output
1 x DP 1.2 (Display Port) , Supports 4K@60fps output
Supports Dual MIPI-DSI (4 lines per channel)
Camera 2 x MIPI-CSI Camera connector (MIPI_RX0、MIPI_TX1/RX1)
USB 2 x USB2.0 HOST,1x USB3.0 HOST, 1 x USB3.0 Type-C
RTC Support RTC, on-board battery backup interface
Debug UART 3 pins Debug UART
GPIO GPIO1 40 pins(1 x I2S、2 x I2C、1 x SPI/UART、8 x GPIO)
GPIO2 24pin PCIE port
Key Upgrade Key & Reset Key
Power Source DC 5V/3A TYPE-C 5V/3A
LED Power led & Status led
OS Support Android 8.1
Ubuntu 16.04
Ubuntu 18.04
Debian 9
PCB 8 Layer
Dimension 91mm*55.7mm
