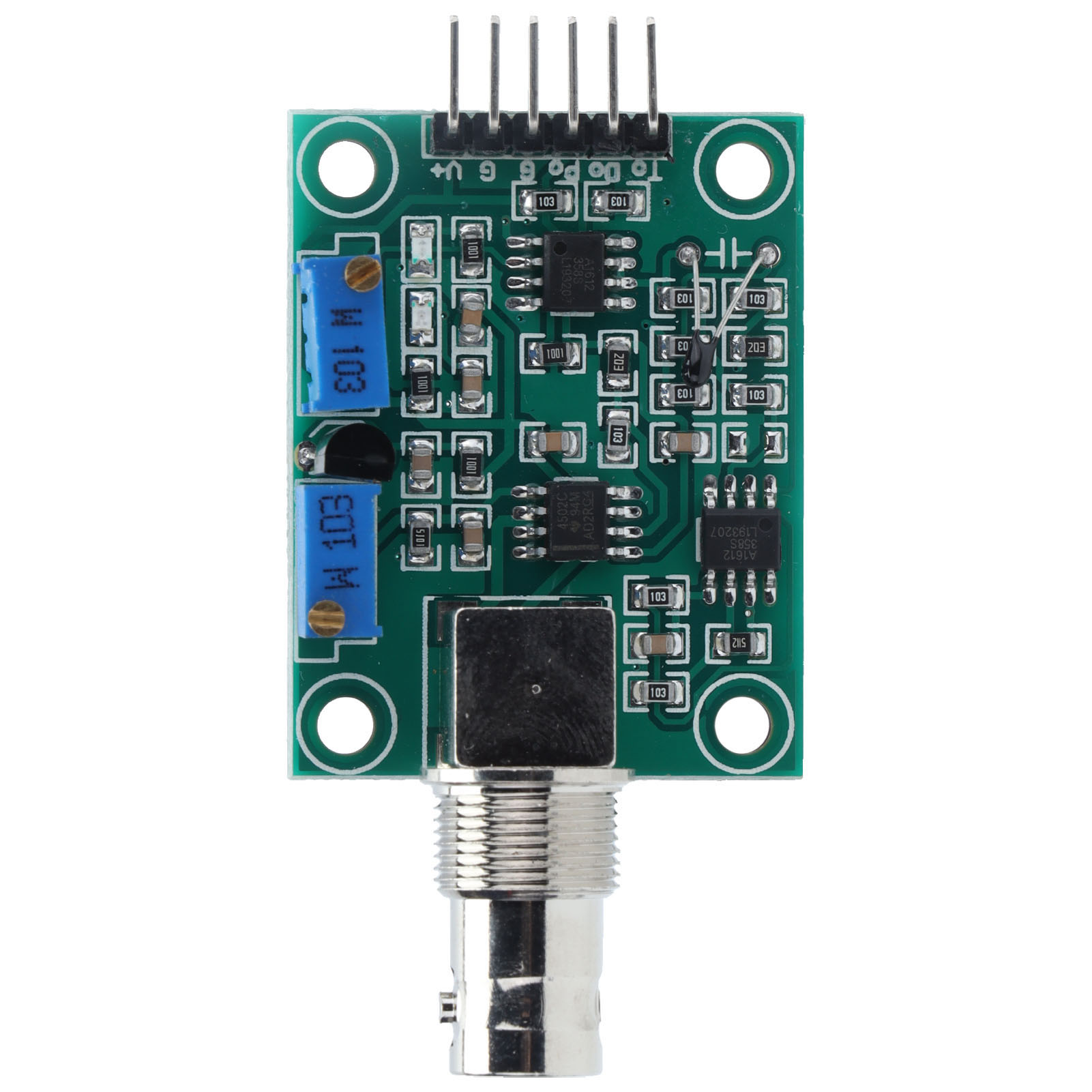

PH4502C PH Meter
We would like to inform you that our store and delivery services will remain closed Till
Oct 25 due to some unavoidable circumstances.
Oct 25 due to some unavoidable circumstances.
12
People watching this product now!
₨ 1,900.00
In stock
Description
Item Special：
Heating voltage: 5±0.2V (AC -• DC)
Working current: 5-10mA
The detection concentration range: PH0-14
The detection range of temperature: 0-60 centigrade
The response time: ≤ 5S
Stability time: ≤ 60S
Power consumption: ≤ 0.5W
The working temperature: -10~50 centigrade (the nominal temperature 20 centigrade)
Working humidity: 95%RH (nominal humidity 65%RH)
Service life: 3 years
Size: 42mm x 32mm x 20mm
Weight: 25g
The output: analog voltage signal output
Working current: 5-10mA
The detection concentration range: PH0-14
The detection range of temperature: 0-60 centigrade
The response time: ≤ 5S
Stability time: ≤ 60S
Power consumption: ≤ 0.5W
The working temperature: -10~50 centigrade (the nominal temperature 20 centigrade)
Working humidity: 95%RH (nominal humidity 65%RH)
Service life: 3 years
Size: 42mm x 32mm x 20mm
Weight: 25g
The output: analog voltage signal output
Pinout
- TO – Temperature output
- DO – 3.3V pH limit trigger
- PO – PH analog output
- Gnd – Gnd for PH probe
- Gnd – Gnd for board
- VCC – 5V DC
- POT 1 – Analog reading offset (Nearest to BNC connector)
- POT 2 – PH limit setting
Package Include:
1 x Liquid PH Value Detection Sensor Module Monitoring Control Module
1 x Liquid PH Value Detection Sensor Module Monitoring Control Module
