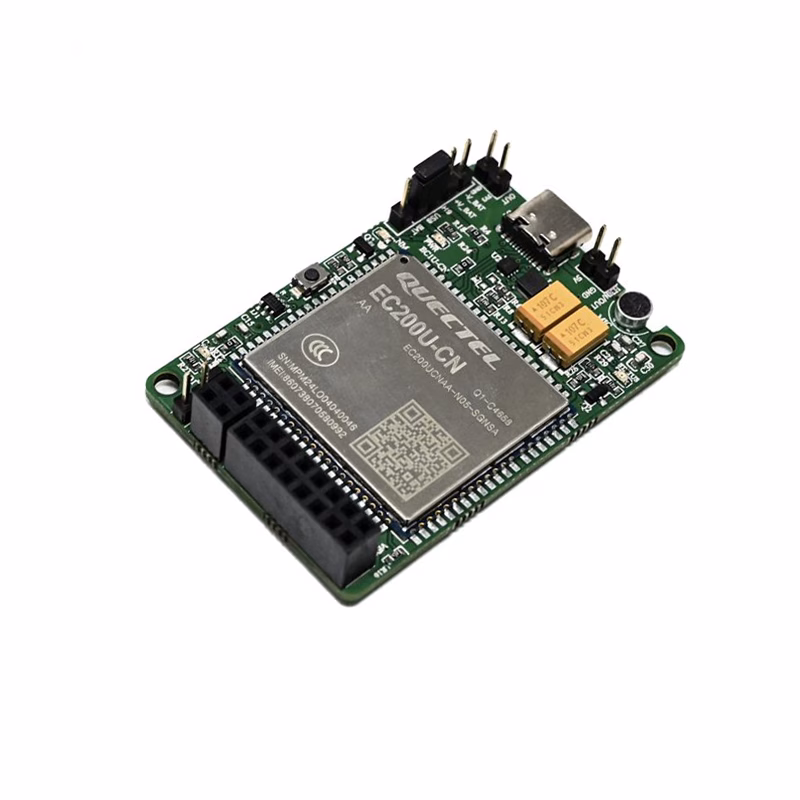

Quectel EC200U 4G/GSM Module with GPS/GNSS for IoT and M2M Applications
₨ 9,000.00
In stock
In stock
Description
The Quectel EC200U 4G/GSM Module with GPS/GNSS is a high-performance LTE Cat 1 wireless communication module designed for IoT (Internet of Things) and M2M (Machine-to-Machine) applications. Built with advanced LTE technology, it delivers stable 4G connectivity along with optional integrated GNSS (GPS, GLONASS, BeiDou, Galileo) for accurate positioning and tracking solutions.
Engineered for reliability and global compatibility, the EC200U series supports LTE-FDD, LTE-TDD, and GSM/GPRS networks, making it ideal for smart devices that require continuous cellular communication. With its compact design, rich interface support, and strong AT command compatibility, it is widely used in fleet tracking, smart metering, industrial automation, POS systems, security systems, and remote monitoring applications.
The built-in GNSS capability enables real-time location tracking, making it an excellent choice for asset tracking, vehicle tracking, navigation systems, and logistics management solutions. Combined with LTE Cat 1 speeds and low power consumption, it provides a balanced solution for cost-effective and efficient IoT deployment.
Key Features
- LTE Cat 1 (4G) high-speed cellular connectivity
- Supports GSM/GPRS fallback for wider coverage
- Integrated GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS)
- Designed for IoT and M2M applications
- Global LTE band support (region-dependent variants)
- High data rate: up to 10 Mbps download / 5 Mbps upload
- Supports SMS, voice, TCP/IP, UDP, HTTP, MQTT, FTP protocols
- USB, UART, GPIO, and SIM interfaces for easy integration
- AT command support for simple device control
- Low power consumption optimized for embedded systems
- Compact, industrial-grade design
Applications
- Vehicle & Fleet Tracking Systems
- Asset Tracking Devices
- Smart Metering Solutions
- Industrial IoT Automation
- Remote Monitoring Systems
- Smart Security Systems
- POS & Payment Devices
- Smart Agriculture Systems
- Logistics & Supply Chain Tracking
- Embedded Wireless Communication Projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Quectel EC200U Series |
| Network Type | LTE Cat 1 / GSM / GPRS |
| LTE Speed | Up to 10 Mbps (DL), 5 Mbps (UL) |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Communication Interfaces | UART, USB, GPIO, SIM |
| Protocol Support | TCP, UDP, HTTP, MQTT, FTP, SSL |
| SMS Support | Text & PDU mode |
| Voice Support | Supported (variant dependent) |
| Power Supply | 3.7V – 4.2V (typical Li-ion) |
| Operating Temperature | Industrial grade (-40°C to +85°C) |
| Form Factor | Compact LCC/SMD module |
| Antenna Interfaces | Main LTE + GNSS antenna |
| AT Commands | 3GPP + Quectel enhanced AT set |
| Regions | CN / EU / AU variants available |
Why Choose Quectel EC200U?
The Quectel EC200U is one of the most widely used LTE Cat 1 IoT modules due to its reliability, global compatibility, and GNSS integration. It provides a perfect balance between cost, performance, and power efficiency, making it suitable for both commercial and industrial IoT solutions.
Its strong ecosystem support, AT command compatibility, and multi-interface design make it easy to integrate into Arduino, ESP32, STM32, and Linux-based systems for rapid development and deployment.
Package Includes
- 1 × Quectel EC200U 4G LTE Module (with GNSS variant depending on model)
