Description:

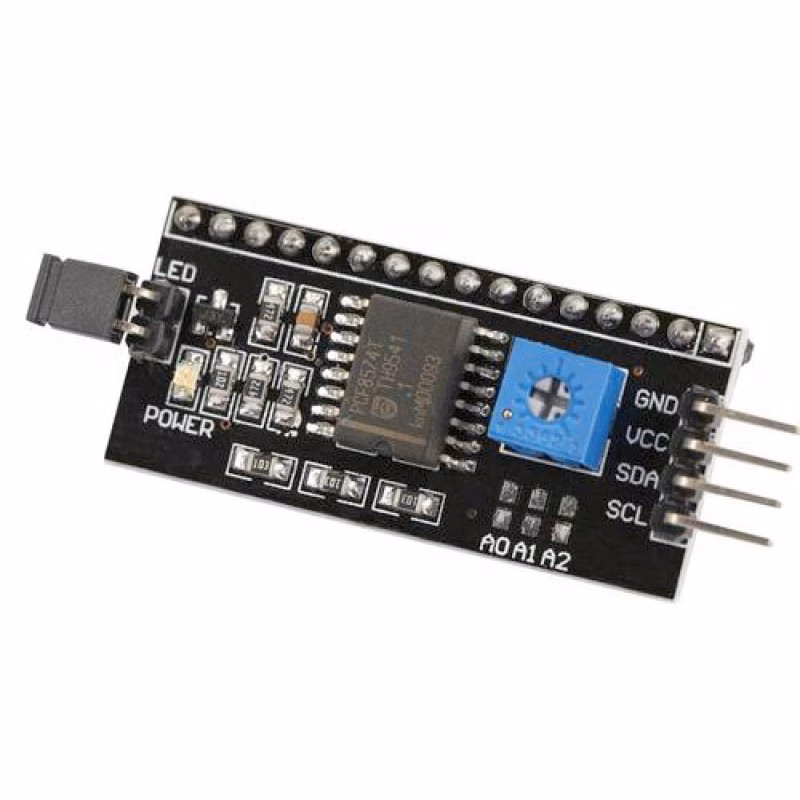

This is a I2C Serial LCD Daughter board that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too. This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one it’s own address).

Specification:

• IC Chip: PCF8574
• Power Supply: 5V

Features:

• 16 x 2 Character LCD display is controlled via just two wires
• Up to 8 LCD displays with adapters can be connected and controlled by the same two wire I2C bus
• Easy to control using Arduino board
• Compatible with 16 x 2 character LCD displays
• Adapter includes 16-PIN male header connector for soldering to LCD display
• Contrast is adjusted via onboard potentiometer
• Backlight may be turned on/off via jumper
• Standard 5V voltage supply

Package Included:

1 x IIC I2C TWI SPI Serial Interface Board Module Port for Arduino LCD1602 Display
