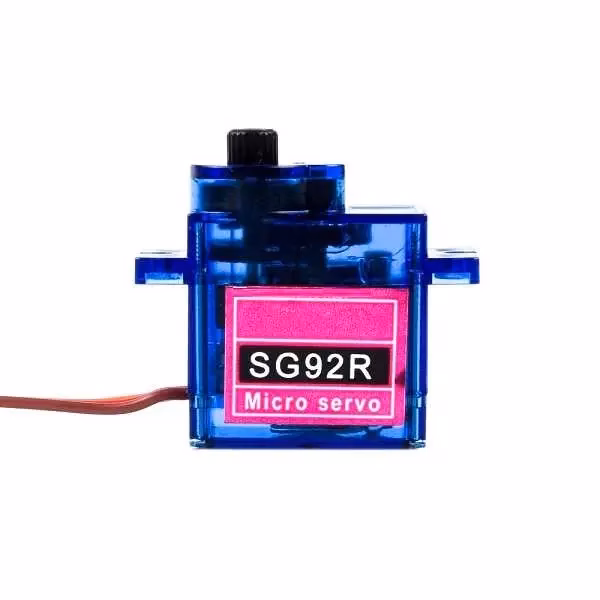

SG92R Micro Servo Motor

This micro servo can rotate 180 degrees. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. It works out of the box with the default servo example from Arduino. Included with this motor is a pack of accessories so you can attach the servo to your project.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE.

TECHNICAL DETAILS

• Input Voltage: 4.8 – 6.0V
• Motor Type: Coreless Motor
• Gear Type: Nylon Gear
• Dead Band Width: 5us
• Stall Torque: 1.5kg/cm (4.8V)
• Operating Speed: 0.12sec / 60degree (4.8V no load)
• Storage Temperature range: -20°C to 60°C
• Temperature Range: -10 to 50°C

Package Included:

• 1 x SG92R Micro Servo Motor
• 1 x Servo head set
