TDS Sensor Meter V1.0 Board Module Water Meter Filter Measuring Water Quality For Arduino UNO
₨ 1,300.00
In stock
In stock
Description

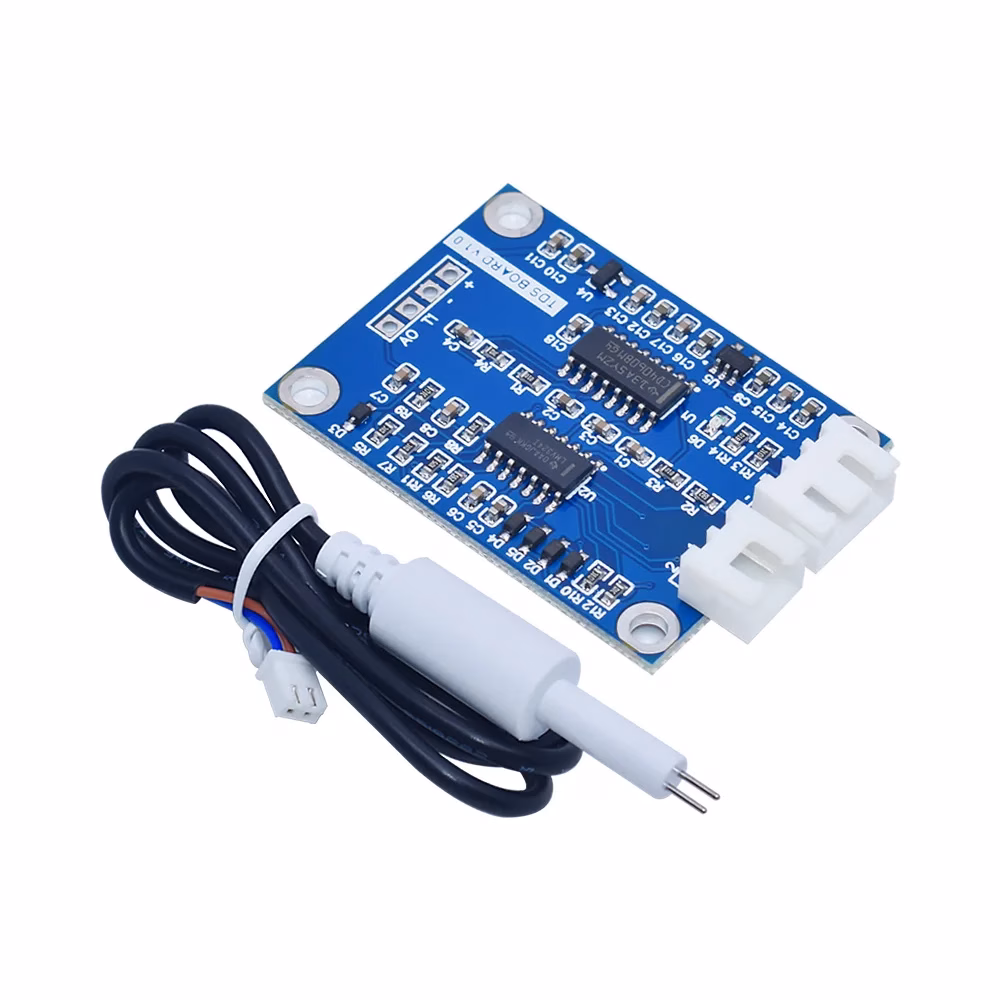

TDS sensor module
Product overview
This is a TDS sensor For Arduino, which is used to measure the TDS value of water, and the TDS value can reflect the cleanliness of water. The excitation source used for measurement uses AC signal, which can effectively prevent the probe polarization, prolong the probe life and increase the stability of the output signal. The TDS probe is waterproof and can be immersed in water for long periods of time.
TDS(Total Dissolved Solids), Chinese name: Total dissolved solids, also known as total dissolved solids, indicates how many milligrams of dissolved solids are dissolved in 1 liter of water. In general, the higher the TDS value, the more dissolved matter the water contains, and the more unclean the water is.
Therefore, the size of TDS value can be used as one of the bases to reflect the cleanliness of water.
Product use
It can be used for water quality detection in domestic water, hydroponics and other fields. With this sensor, you can easily DIY a set of TDS detector, easily detect the cleanliness of the water, and turn off the water quality for you.
Scope of use standard
50
100
200
300
400
Ideal drinking water
Acceptable tap water
Product characteristics
500
inferior state
- Wide voltage operation: 3.3-5.5V
- 0-2.3V analog signal output, compatible with 5V, 3.3V two control systems
- The excitation source is AC signal, effectively preventing probe polarization
- Waterproof probe, can be immersed in water for a long time measurement
- For Arduino compatible, gravity interface, simple connection, plug and play, no need to weld
Product parameter
* Signal switching board:
Input voltage: 3.3-5.5V
Output signal: 0-2.3V
Working current: 3-6mA
TDS measurement: Measurement range:
0-1000ppm
TDS Measurement accuracy: 10% F.S. (25″C)
Product size: 42*32mm
Module interface: PH2.0-3P
Electrode interface: XH2.54-2P
*TDS probe:
Number of probes: 2
Overall length: 83cm.
Cable port: XH2.54-2P
Other: waterproof probe
