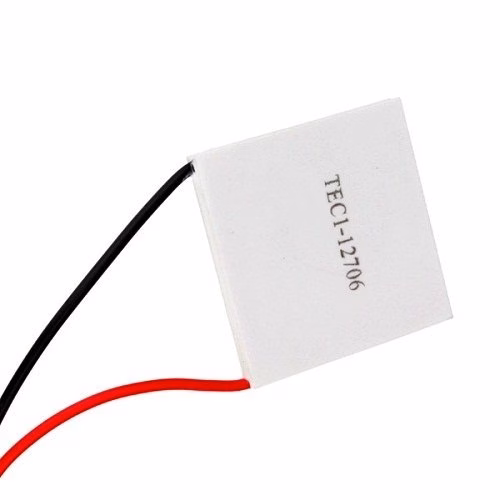

Tec1-12706 Thermoelectric Peltier Cooler 12 Volt 92 Watts

Description

Description:

The TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module is the simple application of Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm which very effectively cools and heats up to 90°C. Thermoelectric coolers also are known as TEC or Peltier Module create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity. This Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it. A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on. Also Known as Thermoelectric cooling modules, Thermoelectric modules, Peltier modules, Thermoelectric cooling module.

Specification:

Model	TEC1-12706
Operating Voltage	12V DC
Maximum Voltage	15V
Maximum Current	6.4A
Maximum Power	92W
Maximum Temperature	138°C
Internal Resistance	1.98Ω



Features:

• Small module.
• Operable up to 138°C.
• Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of supply.
• Quality tested cooling cells.
• Solid state, vibration free, noise-free.
• Simple to install and operate.
• Should use with a heat sink.

Operating Tips:

• Max. Operating Temperature: 138 Degree C
• Do not exceed Imax or Vmax when operating module.
• Please carry out moisture protection options (sealing) in final application use.
• Life expectancy: 200,000 hours
• Failure rate based on longtime testings: 0.2%.



Package Included:

1 x TEC1-12706 Thermoelectric Peltier Cooler 12 Volt 92 Watt
