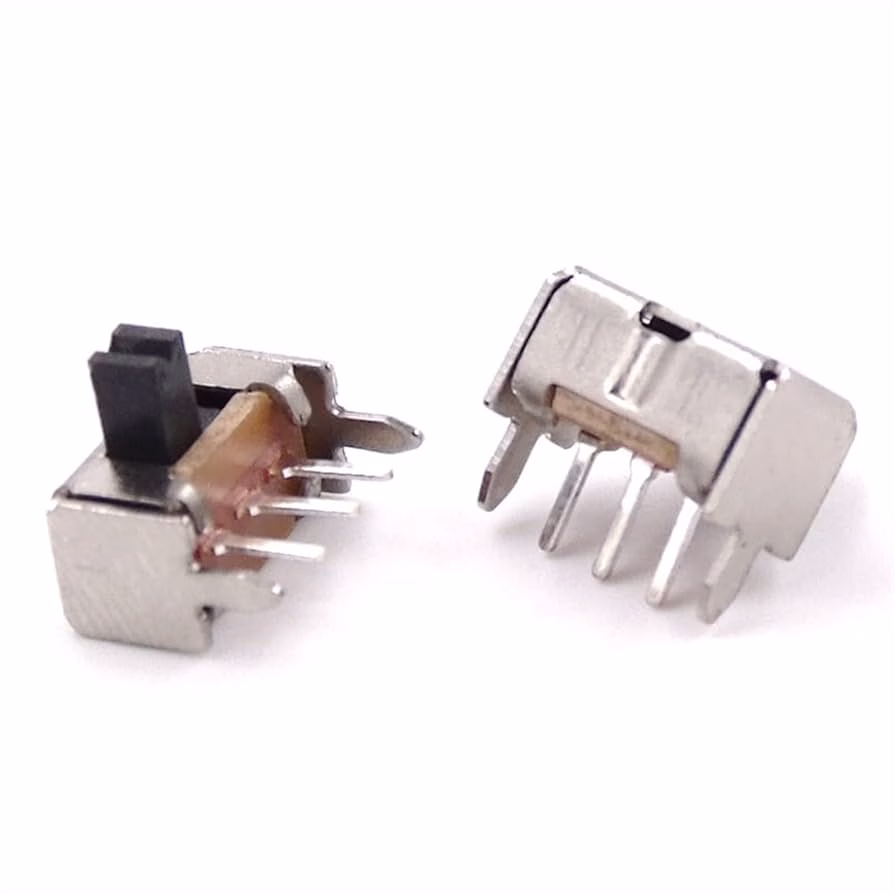

SK12D07VG3 Miniature Right-Angle Slide Switch (SPDT, 3mm Handle Height)

The SK12D07VG3 Miniature Slide Switch is a compact, high-reliability SPDT (Single Pole Double Throw) switch designed for small-footprint electronics, wearables, and low-power circuits. Featuring a durable side-knob design with a 3mm high actuator, this switch provides smooth, tactile 2-position switching (ON-ON) in space-constrained printed circuit board (PCB) layouts.

Engineered for through-hole PCB mounting, the SK12D07VG3 offers excellent contact stability and mechanical endurance, making it an ideal choice for custom DIY electronics, consumer handhelds, and industrial controls.

Key Features

• Compact Footprint: Miniature form factor maximizes available space on high-density PCBs.

• Side-Knob Actuator: Right-angle horizontal slide mechanism with a 3mm height for easy side-edge access.

• SPDT Configuration: Single Pole Double Throw (3-pin layout) supporting standard 2-position (ON-ON) switching logic.

• Tactile Feedback: Crisp sliding action prevents accidental toggling or partial contacts.

• Durable Construction: Built with corrosion-resistant terminal pins and a heat-resistant housing suitable for standard soldering.

Technical Specifications

Common Applications

• Consumer Electronics: Audio accessories, wireless earbuds cases, LED light toggles, small toys.

• DIY & Prototyping: Custom PCB projects, Arduino, Raspberry Pi, and micro-controller circuit power switches.

• Medical & Wearable Tech: Portable diagnostics, compact battery-powered devices.

• Industrial Controls: Sub-assembly mode selection and onboard hardware resets.
