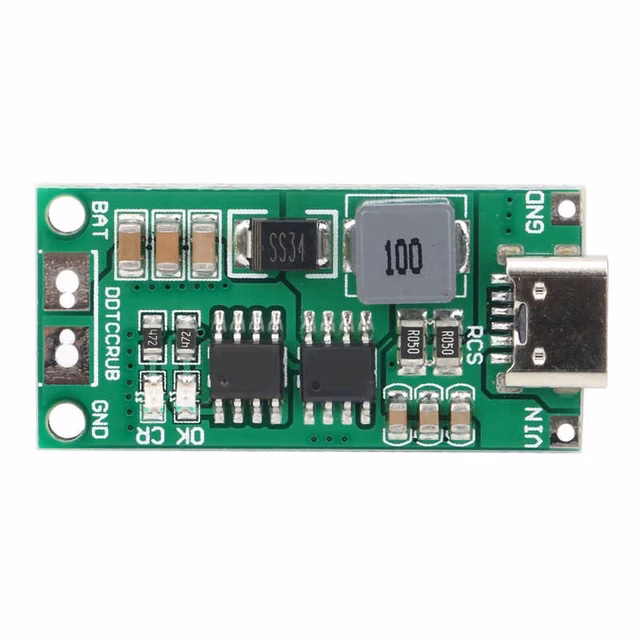

Type C BMS 4A 18650 Lithium Battery Charger Step-up Boost Module
₨ 200.00 – ₨ 300.00Price range: ₨ 200.00 through ₨ 300.00
Description
1: Diverse choices, customers can choose what they need according to different needs
2: Widely used
3: High safety performance
4: Simple and easy to understand and operate
5: Battery overvoltage protection
Parameter:
2-Cell(2S) 8.4V Version:Input voltage : DC 3-6V(Recommend DC 3.7V 5V)
Input current : 1A(1A Version);2A(2A Version);4A(4A Version)Charging voltage : 8.4VCharging current : 0.55A(1A Version);1.1A(2A Version);2.2A(4A Version)
3-Cell(3S) 12.6V Version:Input voltage : DC 3-6V(Recommend DC 3.7V 5V)
Input current : 1A(1A Version);2A(2A Version);4A(4A Version)Charging voltage : 12.6VCharging current : 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version)
4-Cell(4S) 16.8V Version:Input voltage : DC 3-6V(Recommend DC 3.7V 5V)
Input current : 1A(1A Version);2A(2A Version);4A(4A Version)Charging voltage : 16.8VCharging current : 0.28A(1A Version);0.56A(2A Version);1.12A(4A Version)
Feature:
Quasi-CV mode to Compensate for the Voltage Loss on Battery Internal Resistance and Trace ResistanceAutomatic RechargeProtection for Battery Voltage Being Low than Input and Short BatteryGood adaptability to Input Supply with Limited Driving CapabilityBattery Overvoltage ProtectionLed indicator : ”CR” LED is charge status indicator”OK” LED is fully charged OR Constant voltage mode;Operating Ambient Temperature-40℃ to +85℃Size 39mm x 18mm x 6.3mmWeight : 5g
Applications:
Package Include:
1 x Li-ion battery charger
