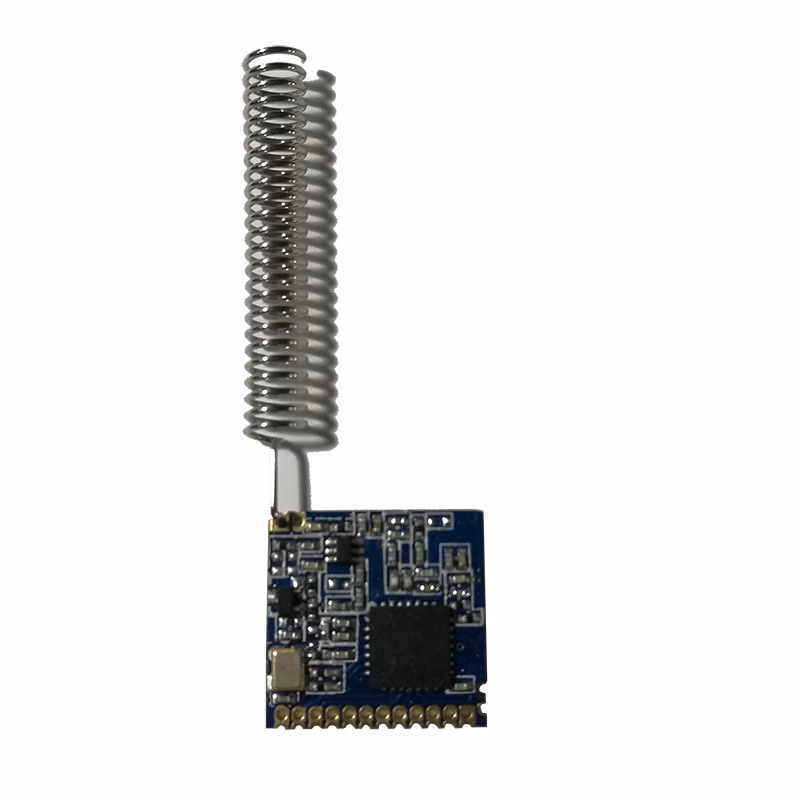

Ultra-small SX1278 LOra spread / power meter reading module / 5km wireless transceiver module

SKU: 0067

 1,500.00

In stock

In stock

14 People watching this product now!

Description

XL1276-D01 wireless module is a wireless chip using SEMTECH’s latest LoRa modulation technology.In addition to the traditional GFSK modulation technology, the module uses LoRa (long-range) spread spectrum technology, with ultra-long-range spread spectrum communicationThe module has high receiving sensitivity and super high anti-interferenceReceiving Distance as far as 5Km. 32M high-precision 10ppm passive crystal.The standard SPI interface,so module can be easily embedded into the existing product or system.Feature:-FSK / GFKS technology, LoRa (remote) spread spectrum technology-Half duplex communication-strong anti-interference (channel rejection ratio: 56db)-high receiving sensitivity -139dbm. (32M passive 10ppm crystal)-ISM multi-band, do not need to apply for free use of frequency.-multi-frequency options, a variety of transmission rates can be used in FDMA and FM technology.-intelligent reset, low voltage monitoring, timing wake-up, low power mode, sleep mode-low power to accept the current: 10-12mA-256-bit FIFO TX / RX-RSSI channel detection function-Transfer mode: FIFO / direct mode (recommended FIFO packet mode)-configuration: AFC / airborne wake-up function / low power consumption / carrier sense / FEC error correction / AEC encryption-ultra-long distance transmission open up to 5KM.-Module size: 22.8 * 22.7 * 4.2mm

Application:1) remote control and remote data acquisition system2) wireless meter reading (water meter, electricity meter, gas meter)3) used for oil field, mining area, site, factory and other original 485/232 interface system4) Industrial data acquisition, transmission, intelligent control system5) wireless alarm system6) smart furniture system7) Baby Monitoring System / Hospital Paging System8) wireless small data transmission system



Packing List:1* SX1278 LoRa Spread Spectrum/Power Meter reading module1* Spring
