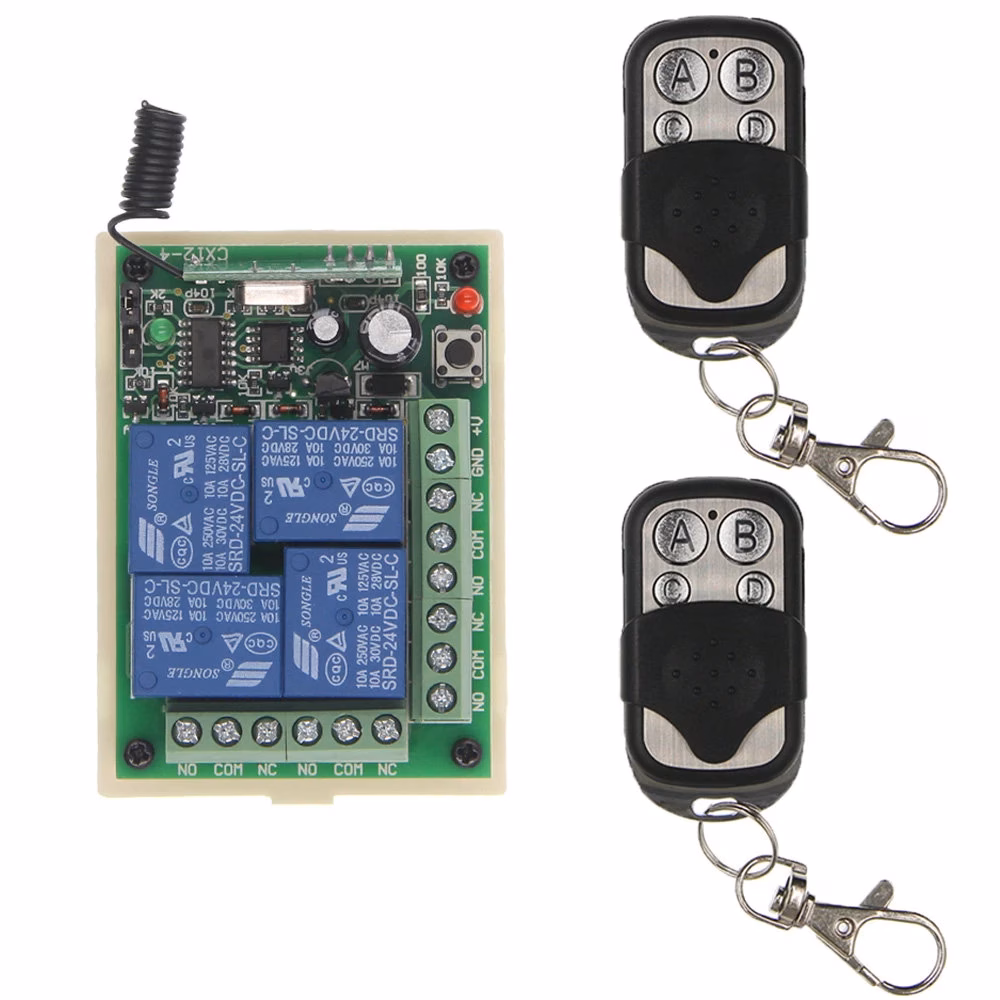

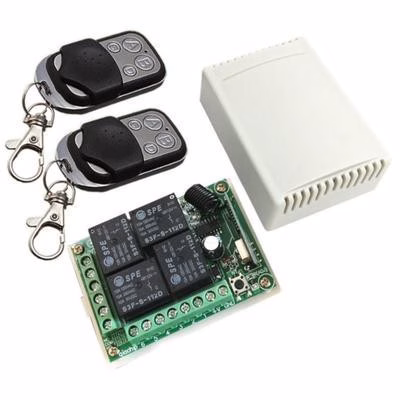

Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter With Two Remote Control
₨ 2,300.00
In stock
20
People watching this product now!
Description
Technical Data:
Input Power:AC 220V
Standby Current:<8.5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Transmitting distance: More than 15 meters
Decoding mode: MCU software decoding
Learnable Transmitters: 1-16 transmitters
Support remote type: Learning code 1527
Switching Modes:
Both Momentary & Toggle
Wiring type:fixed terminal
Switch Output : normally open & normally closed.
Dimension of PCB
(L,W,H)
35*30*18mm
1 3/8 * 1 3/16 * 11/16″
Switch Output:
NO: normal open
COM: common
NC: normal close
Wire port :
NO: normal open
COM: common
NC: normal close
HOW TO USE:
On this products details page, there is a demonstration video available.
You can also see the video at this URL:
youtu.be/k06q76qthBw
Working Modes explanation:
Momentary Mode:
Push the remote button , the relay activates, release the remote button the relay deactivates.
Toggle Mode:
Push and release the remote button , the relay activates.
Push and release the remote button again and the relay deactivates.
Clearing All Stored Transmitters:
**Note**
After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.
Push the learning button on the receiver 8 times , and the codes will be cleared .
Learning the transmitter :(momentary Mode)
Programing a 2 button transmitter as momentary mode transmitter.
STEP 1
Push and release the learning key on the receiver ONCE.
Wait for a moment , the LED will turn off , indicating you entered the learning state.
STEP 2
Push and release the first button on your transmitter, the LED on the receiver board will flash on then off indicating the button was learned.
STEP 3
Press and release the second button, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again , indicating system is ready for use.
Learning the transmitter : ( Toggle Mode )
Programing a 2 button transmitter as toggle.
STEP 1
Press and release the learning key on the receiver TWICE.
Wait for a moment , the LED will turn off , indicating you entered the learning state.
STEP 2
Press and release the first button on your transmitter, the LED on the receiver board will flash on then turn off.
Indicating the button was learned.
STEP 3
Next press and release the second button, watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
**Notice**
two button transmitters can only be used as toggle or momentary.
One mode per 2 button transmitter.
(Please note: You let the control panel to learn the remote control, you must press the “A” and “B” button;
Rather than just pressing one of them )
However you can program another transmitter in the other mode.
