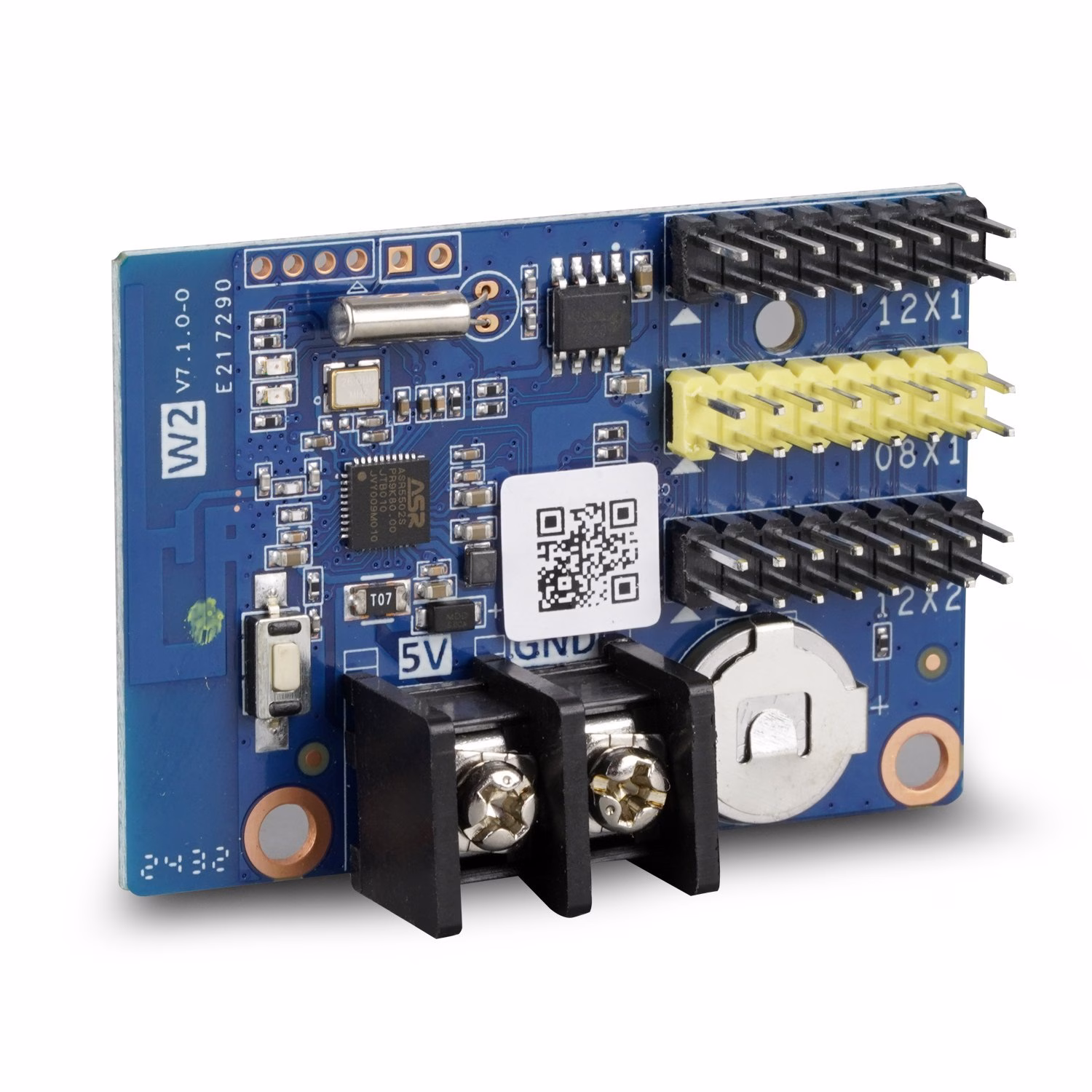

W2 Single-Dual Color WIFI LED Control Card For P4.75 P10 Panel Scrolling Message Sign
₨ 1,300.00
In stock
In stock
Description
W2 (referred to as W2) is a single color Wi-Fi control card for banner screen, store sign screen and other occasions, which can display text, clock, counting, timing and other kinds of content, and support cell phone,laptop wireless connection to update the program. Supporting software interface is simple, easy to operate, and at the same time has high cost-effective and so on.
Application Software:
PC: HDSign (HD2020);
Mobile: “LedArt APP” and “LedArt lite APP”;
Features：
Product model:W2
With load:512*32、1024*16
HUB:12*2、08*1
Color and gray level: single primary color, dual primary color no gray level
Communication method:Wi-Fi
Product feature:
1. Simple, easy to use, stable;
2.Wi-Fi communication, fast transmission speed
3.Mobile App control, support custom partition;
4.Support P4.75,P10,16188B and other 08,12 interface modules
5. The function of restoring wifi passwords and clearingprograms after power is off can reduce maintenance costs
Connection Diagram
After the Wi-Fi control card is powered on, cell phones and laptops can connect to the control card’s Wi-Fi hotspot for debugging or updating programs.
Function List
Control range: Single color：512* 32,Max Width：1024 Max Height：32
FLASH Capacity: 1M Byte（Practical usage 512KB）
Communication :Wi-Fi
Program Quantity: Max 1000pcs Programs.
Area Quantity: 20 areas with separate zone, and separated special effects and border
Display Showing: Text, Time, Timekeeping, Count, Lunar calendar
Display :Sequence display, button switch
Clock Function
1. Support Digital Clock/ Dial Clock / Lunar Time
2. The font, size, color and position can be set freely
3. Support multiple time zones
Automatic switch screen: Support timer switch machine
Dimming: Supports manual adjustment, adjustment by time period
Working Power: 3W
Port Definition
Size Diagram
Interface Description
1) Power input: Connect to a 5V DC power supply
2) Test key: click to switch screen test status
3) Indicator light:Normal power-on power indicator constant, Wi-Fi normal operation
indicator blinking
4) HUB ports: 2 HUB12,1 HUB08,For connecting to the display
Basic Parameters
Work voltage（V）: DC 4.2V-5.5V
Work temperature（℃）: -40℃~80℃
Work humidity（RH）: 0~95%RH
Storage temperature(℃) : -40℃~105℃
Precautions
1) To ensure that the control card is stored during normal operation, make sure the battery on the control card is
not loose;
2) In order to ensure the long-term stable operation of the system; please try to use the standard 5V power
supply voltage.
