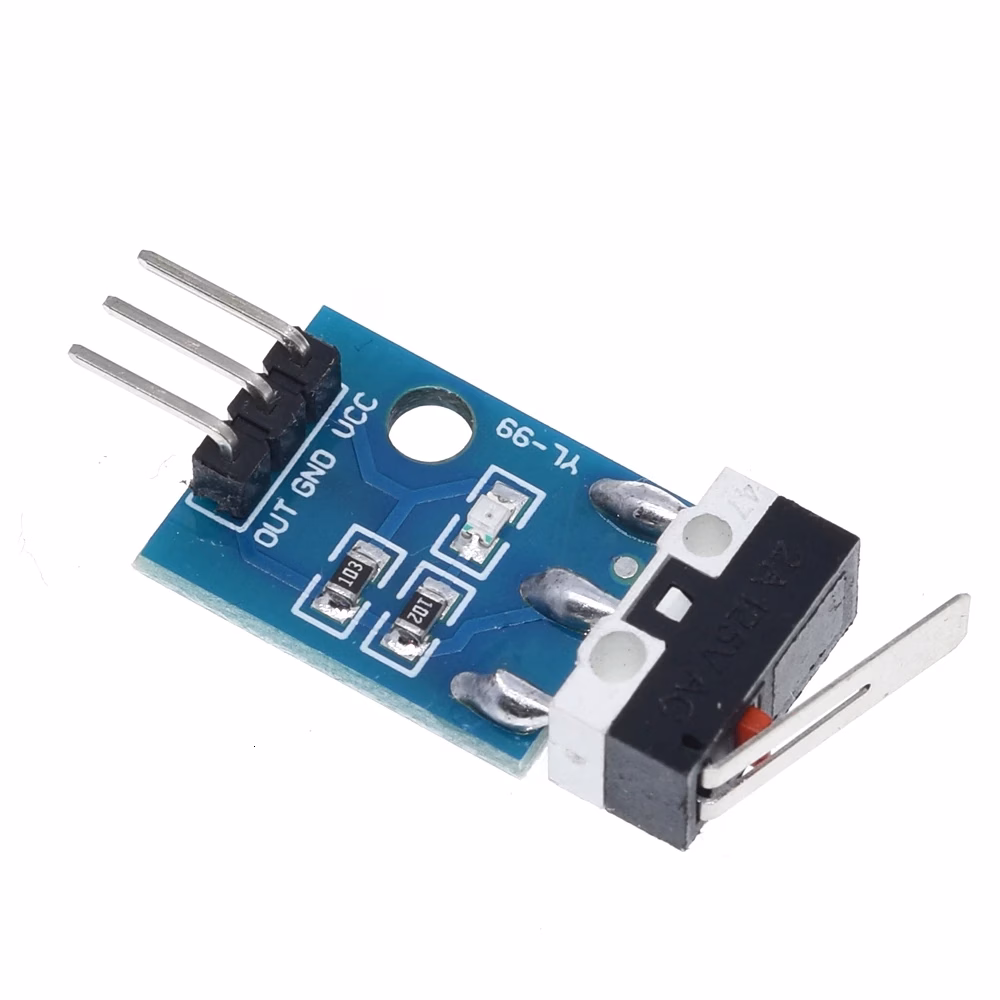

XD-206 crash switch module microcontroller module robot collision sent the DuPont line

Description

1. Most of the front switches installed in the module are in collision, and the module outputs a non-collision low level and a high level output.

The M3 mounting hole is reserved for module 2, which is convenient to fix on the cart.

4 switch lights, collision, light on, no collision, light off.

Module Pin Description

1 VCC 3v-12v power supply

2 GND supply ground

3 OUT high and low level output
