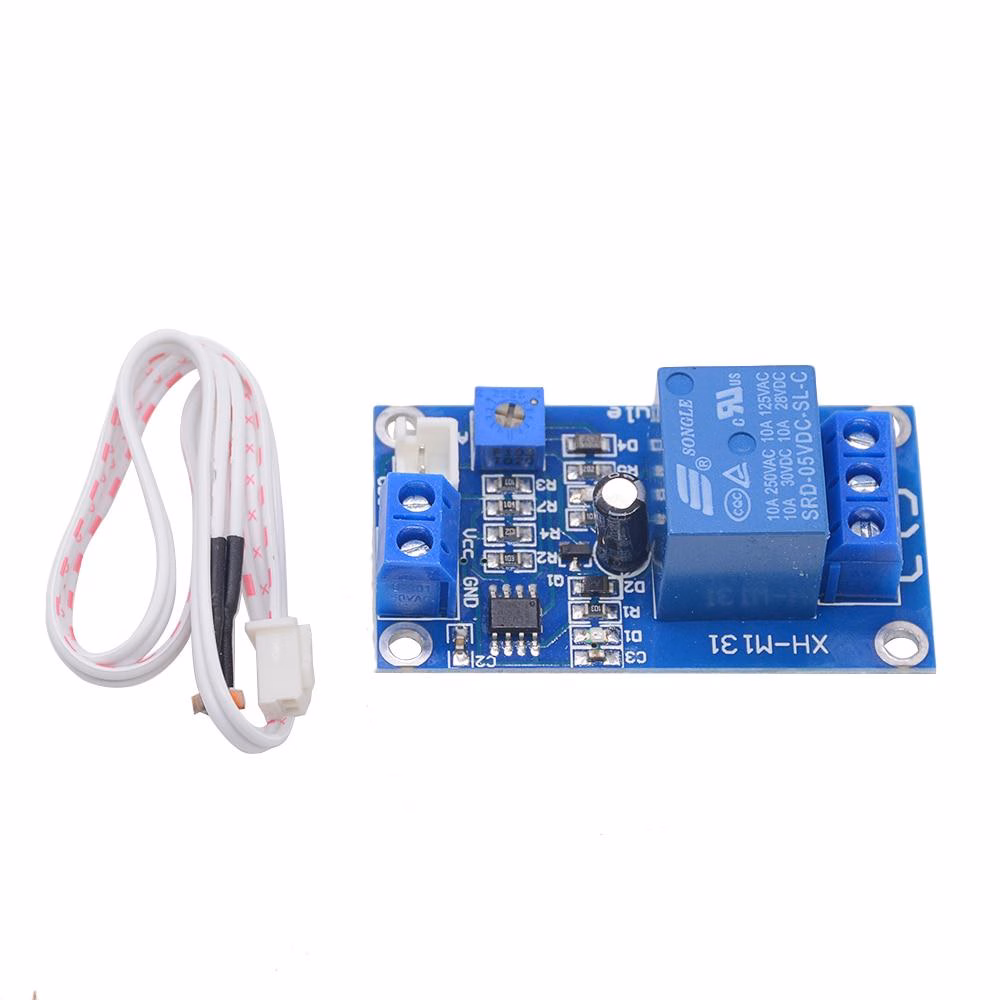

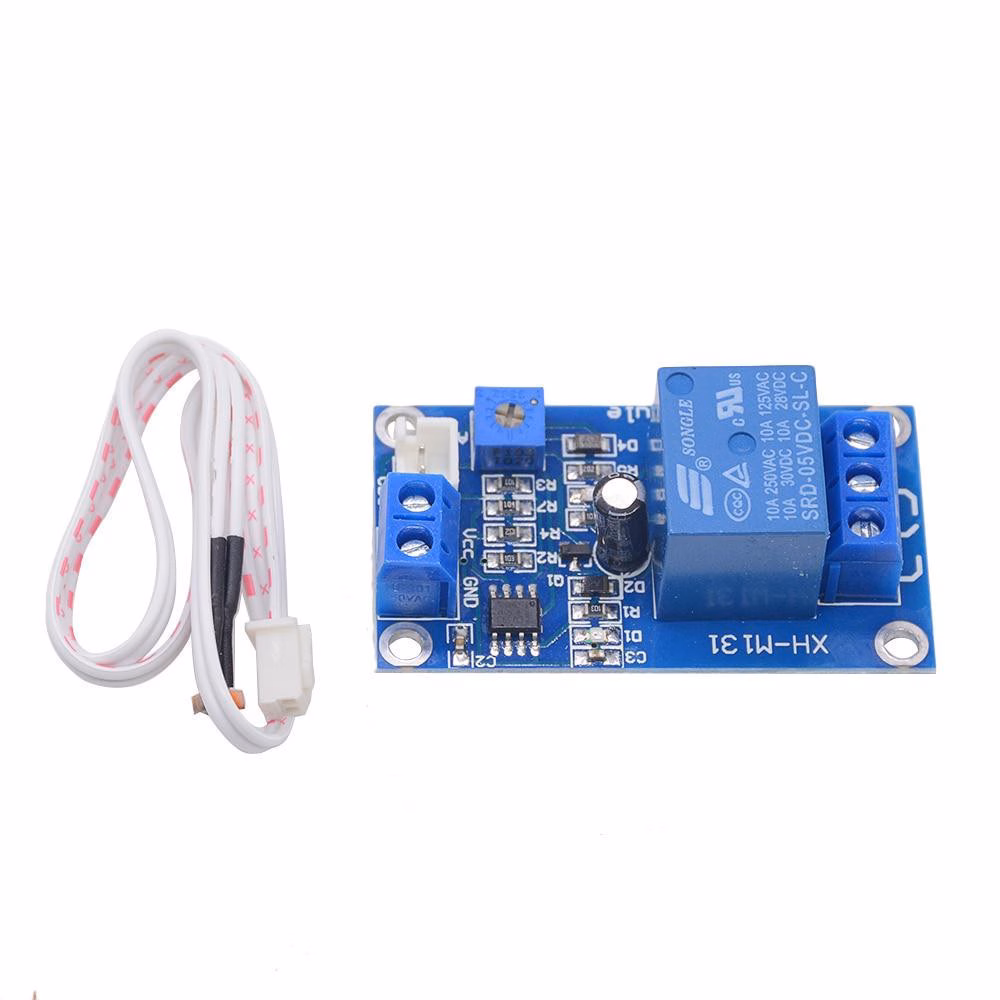

XH-M131 Light Control Switch Photoresistor Relay Module Detection Sensor 10A brightness Automatic Control Module DC 5V

Description

DC 5V / 12V XH-M131 Light Control Switch Photoresistor Relay Module Detection Sensor 10A brightness Automatic Control Relays

Specification:
Light threshold can be adjusted by potentiometer to set the relay start
Input: DC5V / 12V
Load capacity: 10A / AC 250V or DC up to 30V
RED LED ON: Indicate the Power ON
BLUE LED ON: Relay is working
Module output terminal has three ports
Normally open ( NO )
Common terminal ( COM )
Normally closed ( NC )
Size: 30MM*53MM
