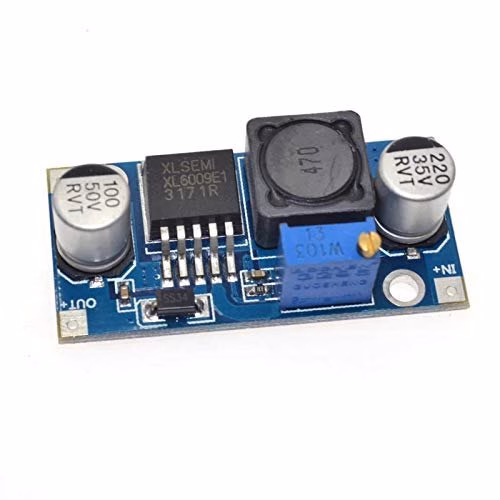

XL6009 4A Boost Converter Step Up Adjustable 15W 5-32V to 5-50V DC-DC Power Supply Module High Performance Low Ripple

XL6009 is a high-performance 400KHz 4A switch currency step-up (BOOST) module. This module XL6009 is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577.

Wide input voltage: 3V~32V; Optimum operating voltage range: 5~32V; Wide output voltage: 5V~40V.

With 4A high efficiency MOSFET switches, so the efficiency can be up to 94%, (LM2577current is 3A only).

With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compare to LM2577 frequency 50KHz).



      Model: DSN6009 boost module

      Module Properties: Non-isolated boost (BOOST)

      Input Range: 3V ~ 32V

      Output Range: 5V ~ 35V

      Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)

      Conversion efficiency: <94% (greater the pressure, the lower the efficiency)

      Switching frequency: 400KHz

      Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)

      Load Regulation: +/-0.5%

      Voltage Regulation: +/-0.5%

      Operating Temperature: -40 degree to +85 degree

      Body Size: 43 x 20 x 12mm/1.7″ x 0.8″ x 0.47″(L*W*T)

      Input way: IN+, IN-;

      Output way: OUT+, OUT-
