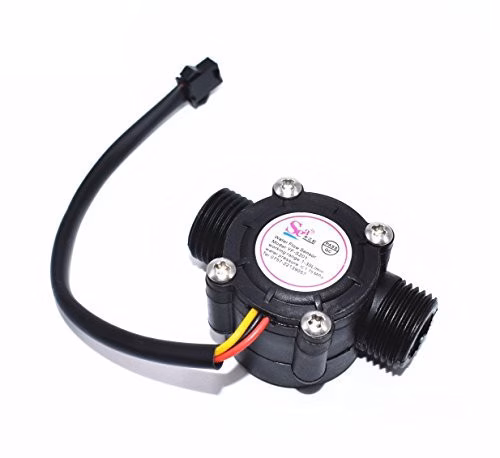

YF-S201 Water flow sensor flowmeter Hall flow sensor Water control sensor 1-30L/min 2.0MPa.
We would like to inform you that our store and delivery services will remain closed Till
Oct 25 due to some unavoidable circumstances.
Oct 25 due to some unavoidable circumstances.
11
People watching this product now!
₨ 600.00
In stock
Description
Product Parameters
1, the lowest rated working voltage: DC4.5 5V-24V
2, the maximum working current: 15 mA (DC 5V)
3, working voltage range: DC 5 ~ 18 V
4, load capacity: ≤ 10 mA (DC 5V)
5, the use temperature range: ≤ 80 ° C
6, the use of humidity range: 35% ~ 90% RH (no frosting state)
7, allow pressure: water pressure below 1.75Mpa
8, storage temperature: -25 ~ + 80 ° C
9, storage humidity: 25% ~ 95% RH
Precautions for use:
Severe impact and chemical attack are strictly prohibited.
It is strictly forbidden to throw or collide.
The temperature of the medium should not exceed 120 degrees
Lead line mode:
1 red IN connected to the positive pole
2 yellow OUT signal output line
3 black GND connected to the negative
Frequency: F=7.5*Q(L/Min) Error: ±2%
At a flow rate of 1 L/min, 7.5 * 1 * 60 is equal to the number of pulses flowing through 1 liter of water. Voltage: 3.5-24 VDC, the current cannot exceed 10 mA, and 450 pulses are output after one liter of water.
That is, frequency calculation = constant 7.5 * unit flow rate (L / min) * time (seconds)
Flow range: 1-30L/min
