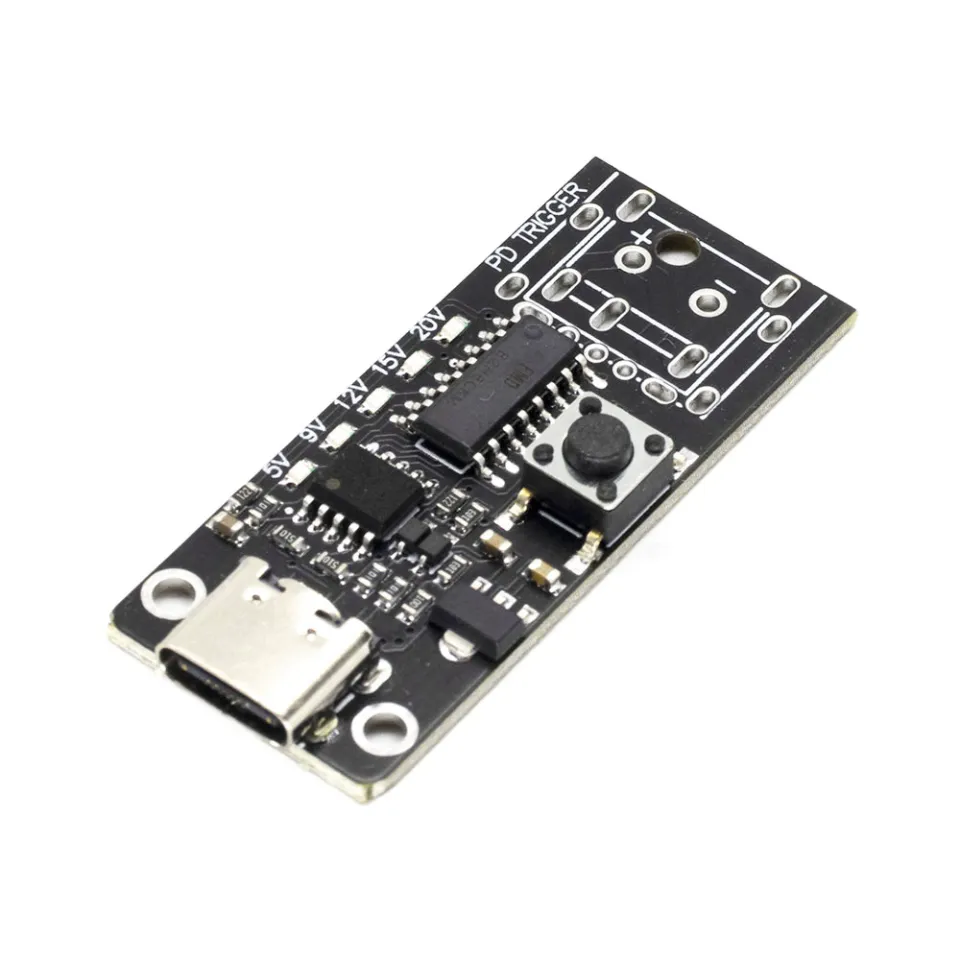

100W 5A USB Type-C QC Decoy Trigger Board

SKU: 0904

 550.00

Out of stock

Out of stock

13 People watching this product now!

Description

Product features:



The TYPEC interface is integrally formed, solid and durable, and the keys are purchased with good touch and appropriate height.



USB adopts 5A high current interface, with high durability



External quick switch button and software safety lock



Voltage detection, automatic polling



High voltage withstand, adjustable jump time, low voltage flashing prompt



Product parameters:



Automatic switching voltage, 5-20V with EMarker maximum 100W can be detected automatically



With E-Marker support 20V 5A 100w



Support PD3.0, PD2.0, QC, FCP, AFC voltage decoy output, mode free switching, or set to only support PD



Support 5V/9V/12V/20V decoy output (the specific range is related to the use of power supply)



With key lock function to prevent misoperation (to avoid damage to load equipment due to mis-setting voltage)



5V/9V/12V/20V fast setting, LED indication output.



The parameter braking is saved, and the last trick setting is executed by powering on again.



Ultra low power consumption, high current, support 100W output.



Maximum 20V5A output (actual value depends on your power supply).



Support the selection of automatic polling to the highest voltage and holding, automatic polling to the highest voltage and holding to 5V,



infinite cycle and other test functions.



The test jump time is adjustable.



Suitable for aging test, the module can withstand more than 30V.



Be careful:



1. The decoy needs to be used with the charging head or charging bank with QC or PD fast charging. If you are not sure whether your charging head supports it, please check and confirm the charging head model. The output voltage will also be marked on the charging head. Please determine whether you have the voltage you need



2. Whether the module is selected with E-mark depends on the actual requirements. The power without E-mark can only be supported to 60W. It needs to output more power and E-mark support. The type-c header input requires the line to support E-mark if it is to deceive 5A. The type-c male input module has its own analog E-mark.



3. The module currently supports 5V/12V/15/20V output.



Instructions:



PD ONLY short contact: After short connection, the module only supports PD protocol.

DM and DP short circuit contact: DM and DP can be input from USB after short circuit. Unless needed, short circuit is not recommended.

5 independent key interfaces: 5 independent keys can be connected to quickly switch the voltage, which can be short pressed or long pressed or short connected. The upper end in the figure is grounded and the circuit is connected together.

S1 short contact: set for key lock. After short connection, the switching voltage needs to be unlocked. The unlocking method is to press and hold the key to power on, and then power on again needs to be unlocked again.

F1 short circuit: power-on automatically polls the highest voltage and then maintains it at 5V. And the LED will display the corresponding supported voltage, and the LED lights corresponding to the supported voltage are all on, otherwise it will flash.

F2 short circuit: short circuit with F1, but maintain at the highest voltage supported by the output after polling.

F1 and F2 are short-circuited at the same time: infinite cycle test. The voltage will switch output from low to high cycle.

The default polling and jump time is 0.5 seconds, which can be modified according to the following red-ink method.

When F1 and F2 are short-circuited, polling or voltage jump time setting: press and hold the key without powering on, then the first LED will flash, and if the key is released, it is unlocked. Otherwise, continue to press and hold until all the LEDs flash, then release the key to enter the time setting, and the switching time is reset to 0.5 seconds. At this time, each time you press the button will add 0.5 seconds, and the LED will display the corresponding time in binary mode (if you are unfamiliar with binary, you can count how many times you add the time), with a maximum of 30 times (the corresponding maximum time is 15.5 seconds, and the LED lights are all on).

If you do not press the key within 3 seconds, the time setting will automatically jump out and the set value will be saved, and the reminder will be given by flashing LED lights



inventory

1 * Module
