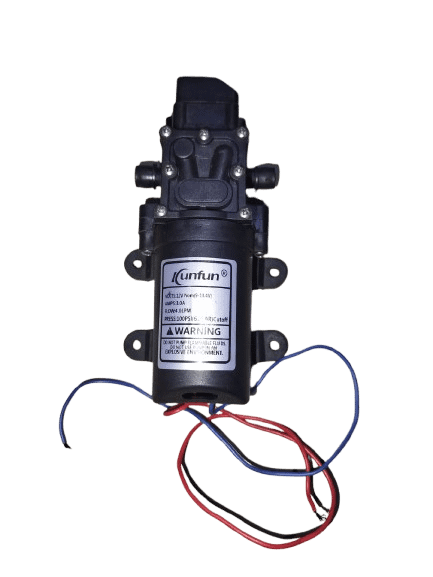

12V Water Pump with Pressure Switch 4.0L min 5.5 Bar Self Priming

SKU: 1468

 900.00

In stock

In stock

18 People watching this product now!

Description

This 12V water pump is self-priming, draws 2.6 amps and includes a built-in pressure switch set on 5.5bar. In South Africa this pump is used for small off-grid applications (water storage, caravan or camper van water supply, boating, pressure booster pump). It can also be used for small portable solutions such as car wash sprayers and any DIY project that requires water transfer. Some applications such as portable gas geysers, caravan/camper van plumbing or drip irrigation systems might require a maximum pressure that is lower than 5.5bar, in which case we recommend you look at this low pressure 12V water pump.

  • Automatic pump pressure switch (5.5bar, 80PSI)
  • 2.6A current only, making it suitable for small 12V batteries
  • Sealed pump body and switch to prevent moisture or dust from entering, electro-coating against corrosion
  • Soft rubber mounting tabs to reduce vibrations
  • Suitable for various applications: freshwater circulation in camper, solar water systems, drip irrigation, fish tanks, hydroponics and aquaponics

When installed correctly, this pump provides years of reliable operation, even in a wet environment. The pump can be installed above the water tank (self-priming pump). The 2.6A amperage protects your 12V batteries. It is not recommended to let it run continuously for several hours.

Specifications

  • Type: Self-priming water pump with 2-chamber diaphragm
  • Working voltage: 12V DC
  • Maximum flow: 4.0L/min
  • Rated current: 2.6A
  • Pump pressure switch: 5.5bar (80PSI)
  • Inlet & outlet diameter: 9.5mm (3/8″) hose barb, suitable for 10mm pipe
  • Max. liquid temperature: 60°C
  • Self-priming vertical suction lift: Up to 1.2m
  • Run dry: Not recommended
  • Motor: Permanent magnet, intermittent
  • Duty protection: Thermal overload, automatic restart
  • Dimensions: 170x100x60mm

Instructions

  • When using 10mm pipe, it is recommended to secure the inlet and outlet connections with small clamps or cable ties
  • Before starting the pump, the outlet line must be open to prevent airlock
  • The pressure switch will automatically shut off the pump when the outlet line is closed and the pressure has risen to 5.5bar
  • The pump pressure switch will restart the pump when the outlet pressure drops
  • The pump is designed to work with a 12V battery and/or a solar panel connected through a 12V solar charge controller
